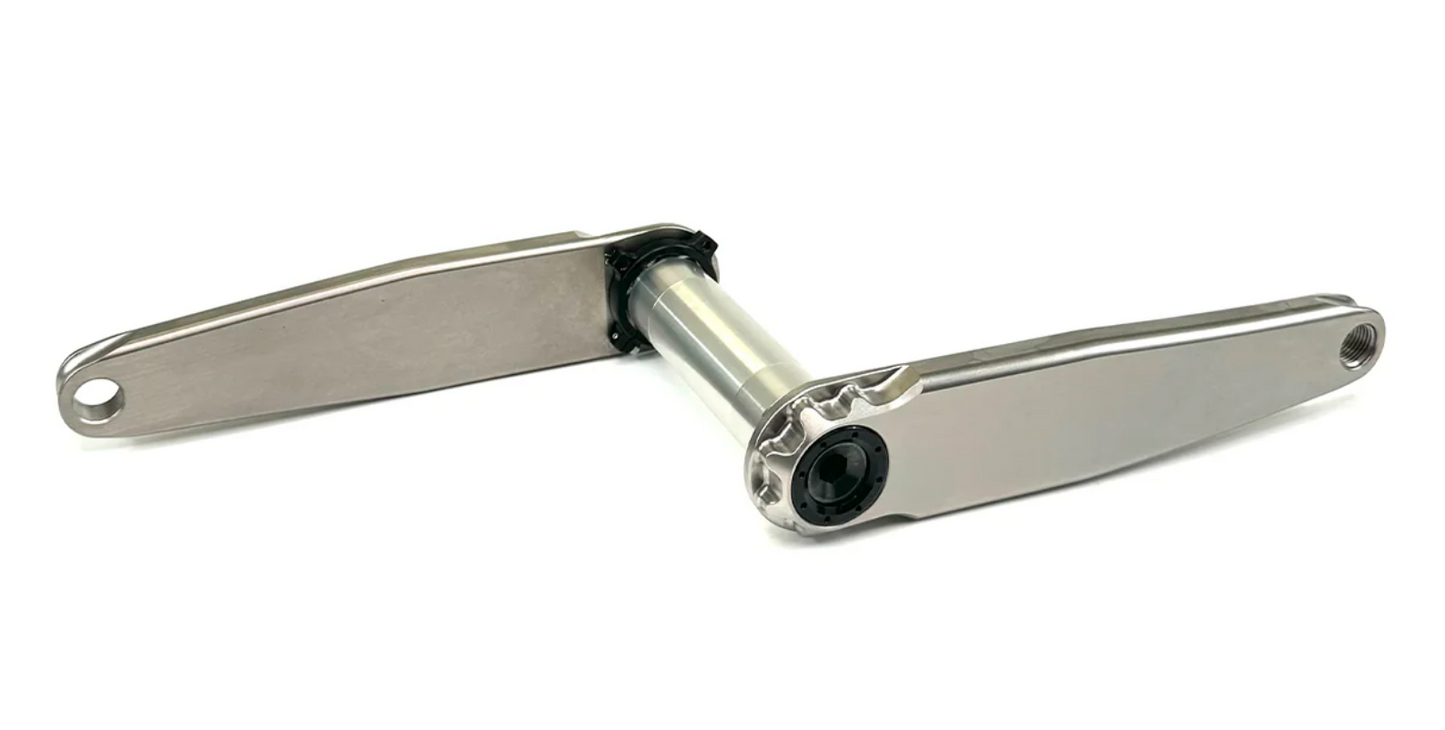

5DEV Road / Gravel / XC Titanium Cranks

Introducing the 5DEV Road Gravel and XC titanium crank. CNC Machined and Laser Welded in San Diego, California.

Tech Features:

Hollow Laser Welded Titanium: Light, Strong and Stiff with Vibration Absorption Design to reduce rider fatigue.

Weight: 446g’s at 170mm with Road Spindle

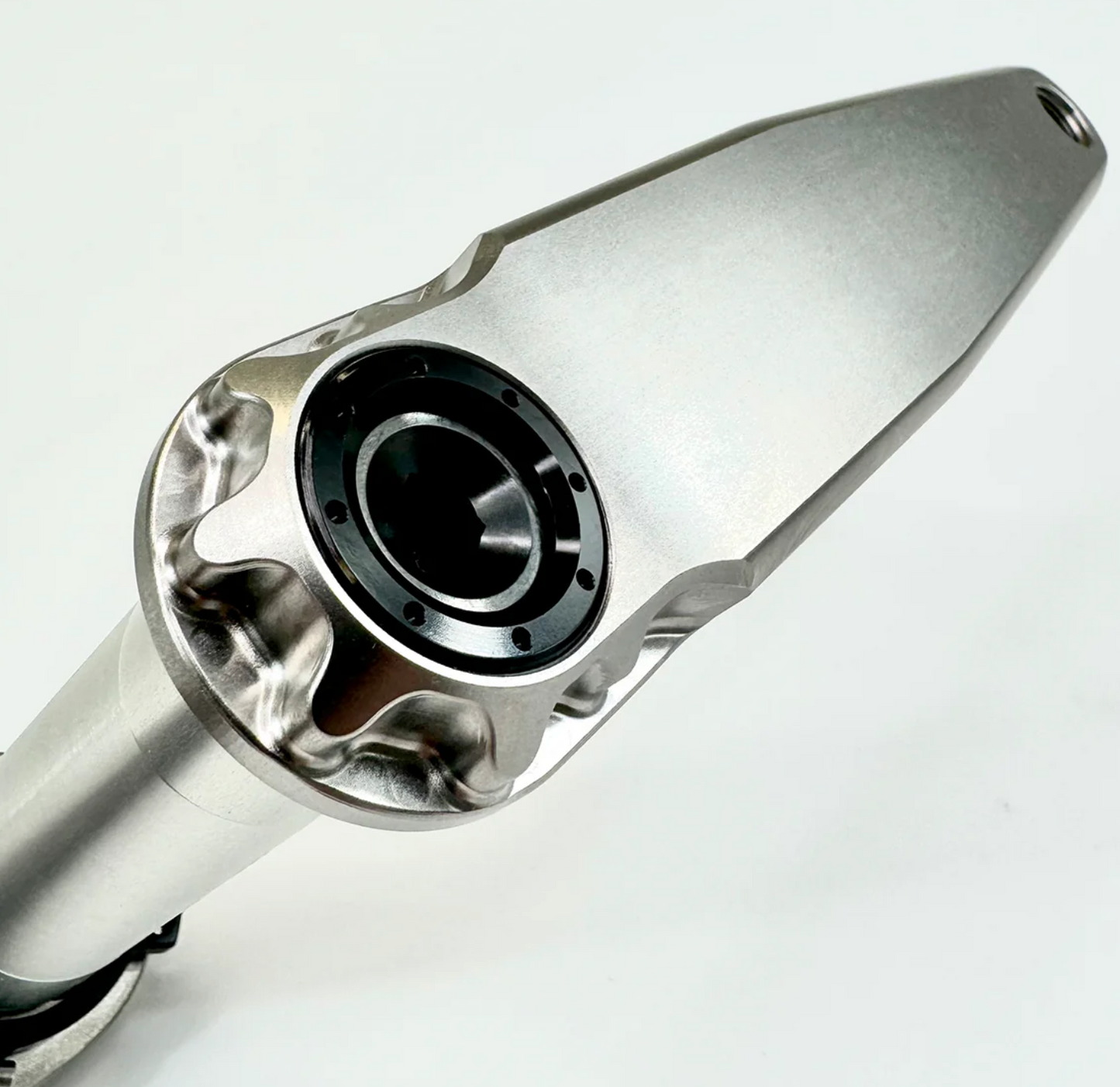

3 Piece Spindle Interface: Allows you to run 68, 73 or DUB Wide Widths for Road, Gravel and XC BB’s. Swap frame to frame with ease. These will never become obsolete! New 118mm Spindle Available.

Q Factor: 152mm Road / 160mm Road Wide / 166 XC with 55mm Chainline

I Factor: 126mm Road / 134 Road Wide / 140mm XC (I Factor is how your determine what spindle you need to clear your chainstays on your frame)

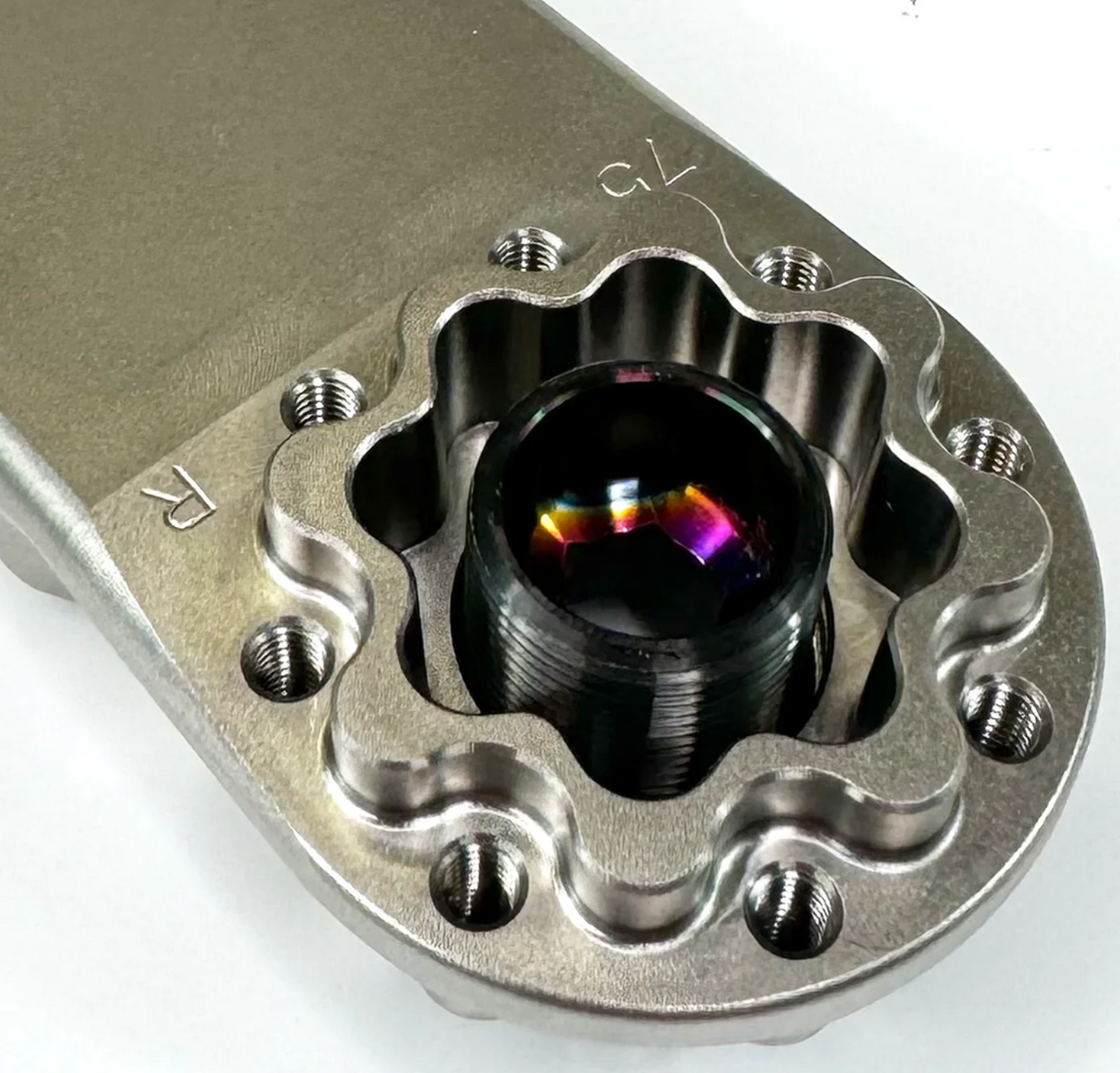

8 Bolt Chainring Pattern: Integrate our Aero or Classic Rings along with SRAM Rings or Quarq Power Meters. 1X or 2X compatible.

Power Meter: All Quarq 8 Bolt Spiders

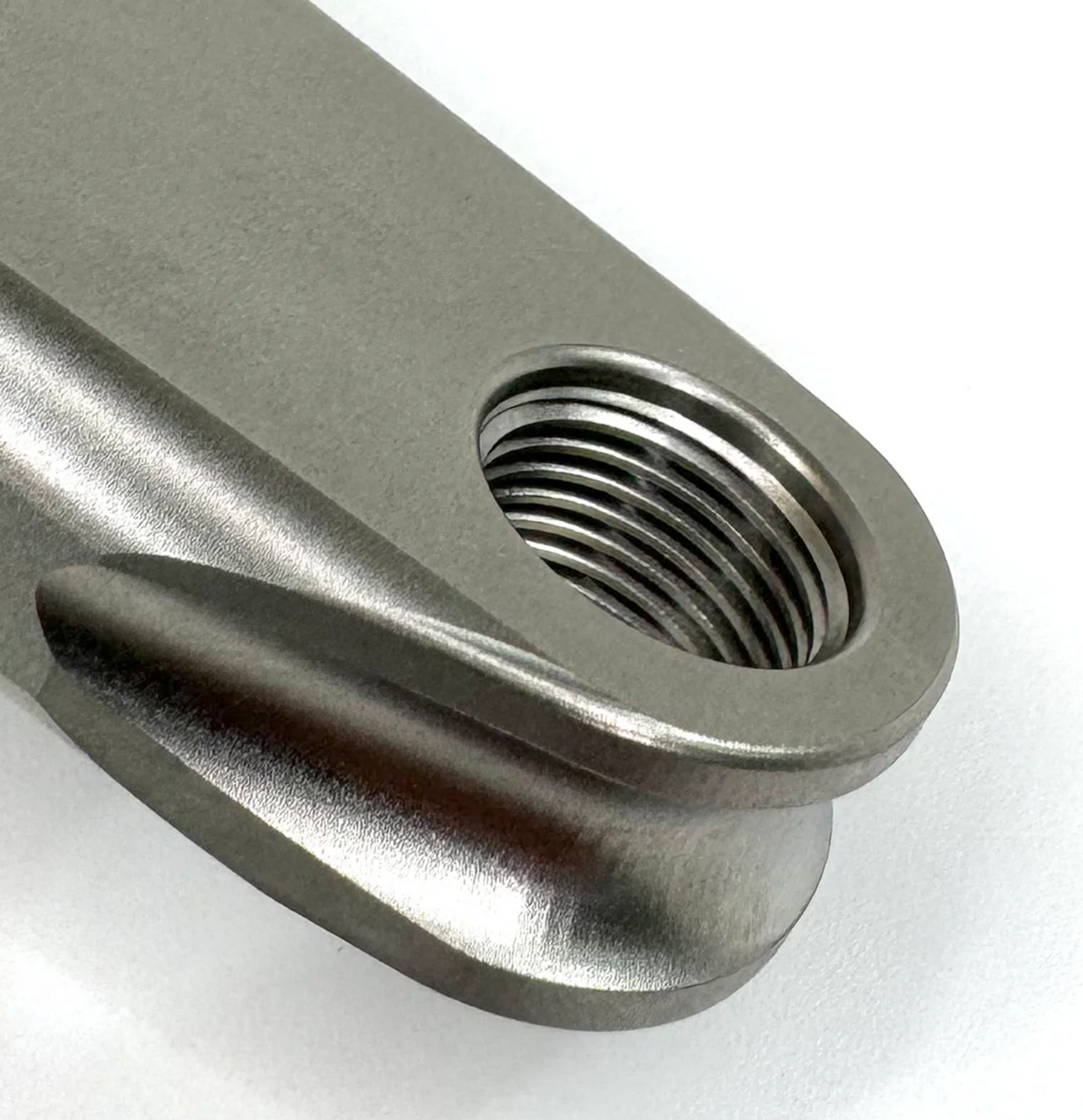

Low Profile Tip: Reduced rock strikes on technical trails.

Diamond Coated Titanium Hardware: to prevent corrosion, reduce weight and improve function.

Sizes: 175 / 170 / 165 Available for Order now. Complete size range in development including 155’s and Quarter Sizes.

Spindles: All of our cranks are compatible with any of our spindles. You can swap spindles out at no cost by emailing info@5DEV.com after you place your order.

If you have questions on what spindle you need please email us at info@5dev.com

You can find a complete list of all our spindle widths and diameters HERE.

Cranks will ship with 29mm diameter spindle unless 30x130 is requested for (73).

R-SPEC+: Tested in house these cranks exceed the ISO Standards by 5X in both Mountain and Road.

Installation: Torque mounting bolts to 50 N-m on each side and use lots of anti seize or grease.

We do not suggest you install titanium pedal spindles with our titanium cranks. Always use anti seize or grease when installing your pedals.

Lifetime Warranty
