5DEV eCranks - Bosch - TQ- R-SPEC

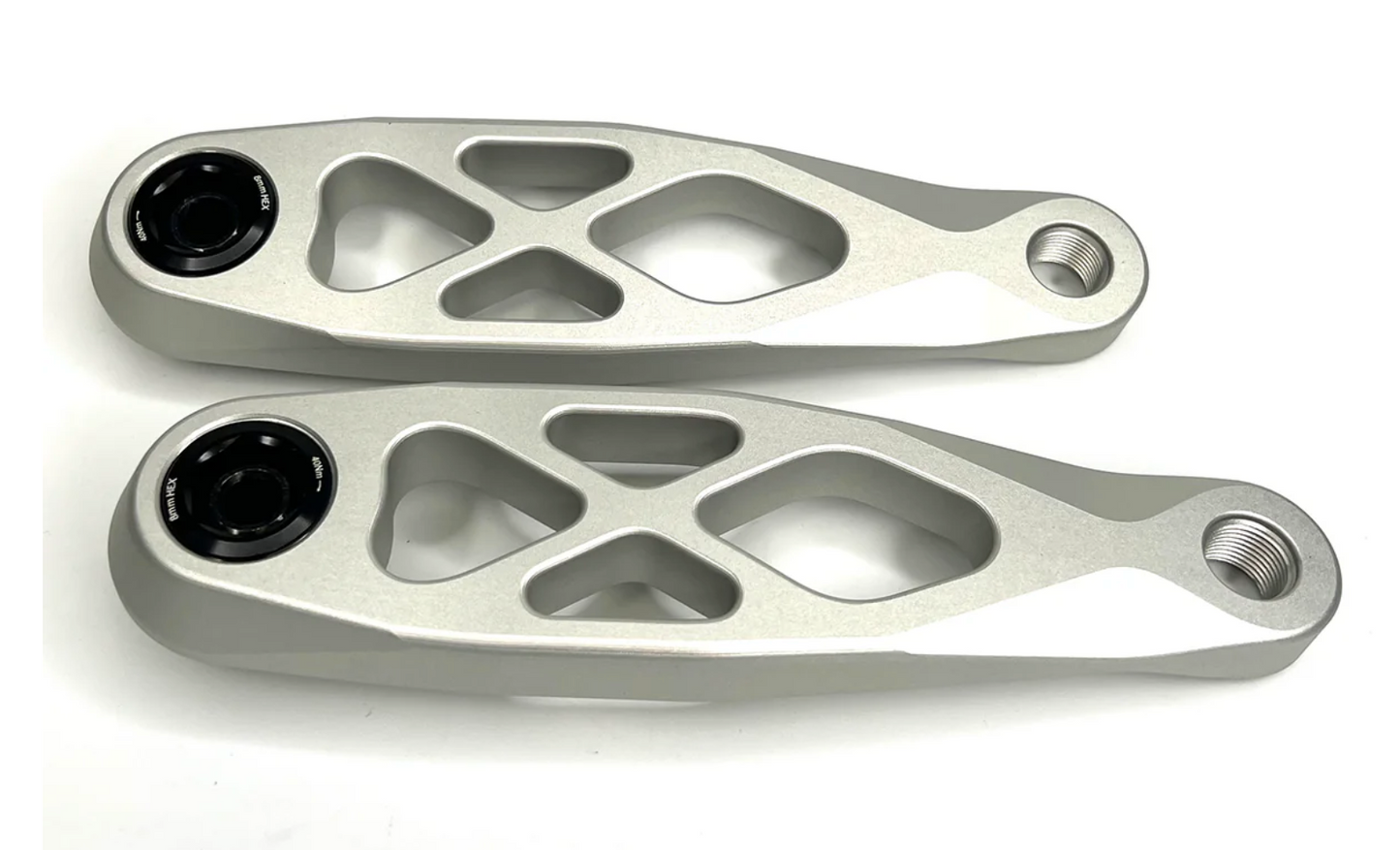

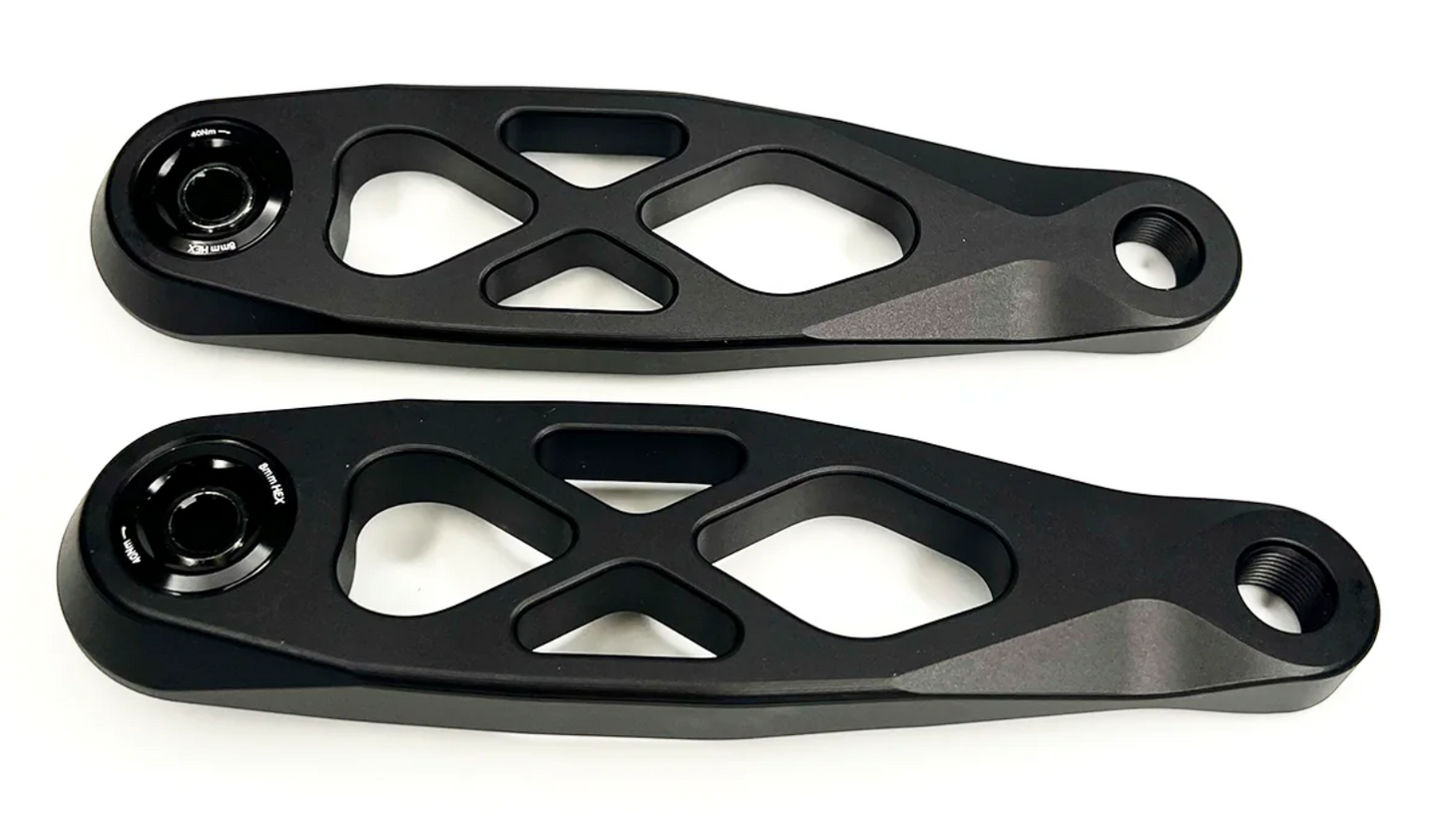

Ride with confidence! Introducing 5 Dev's new 7075 Alloy Cranks for the Bosch and TQ motor.

Our exclusive design will greatly reduce crank strikes when climbing through technical rock sections. These cranks install in minutes and are made to handle anything you throw at them!

Q FACTOR: 192mm

LENGTH: 155mm, 160mm

DRIVE: IS Spline Drive

MATERIAL: 7075-T651 Aerospace Aluminum Billet Machined

WEIGHT: 440g (160mm)

HARDWARE: Alloy steel crank bolt 8mm Hex (40 Nm) Billet aluminum self-extractor 16mm hex (2Nm)

Patent Pending
