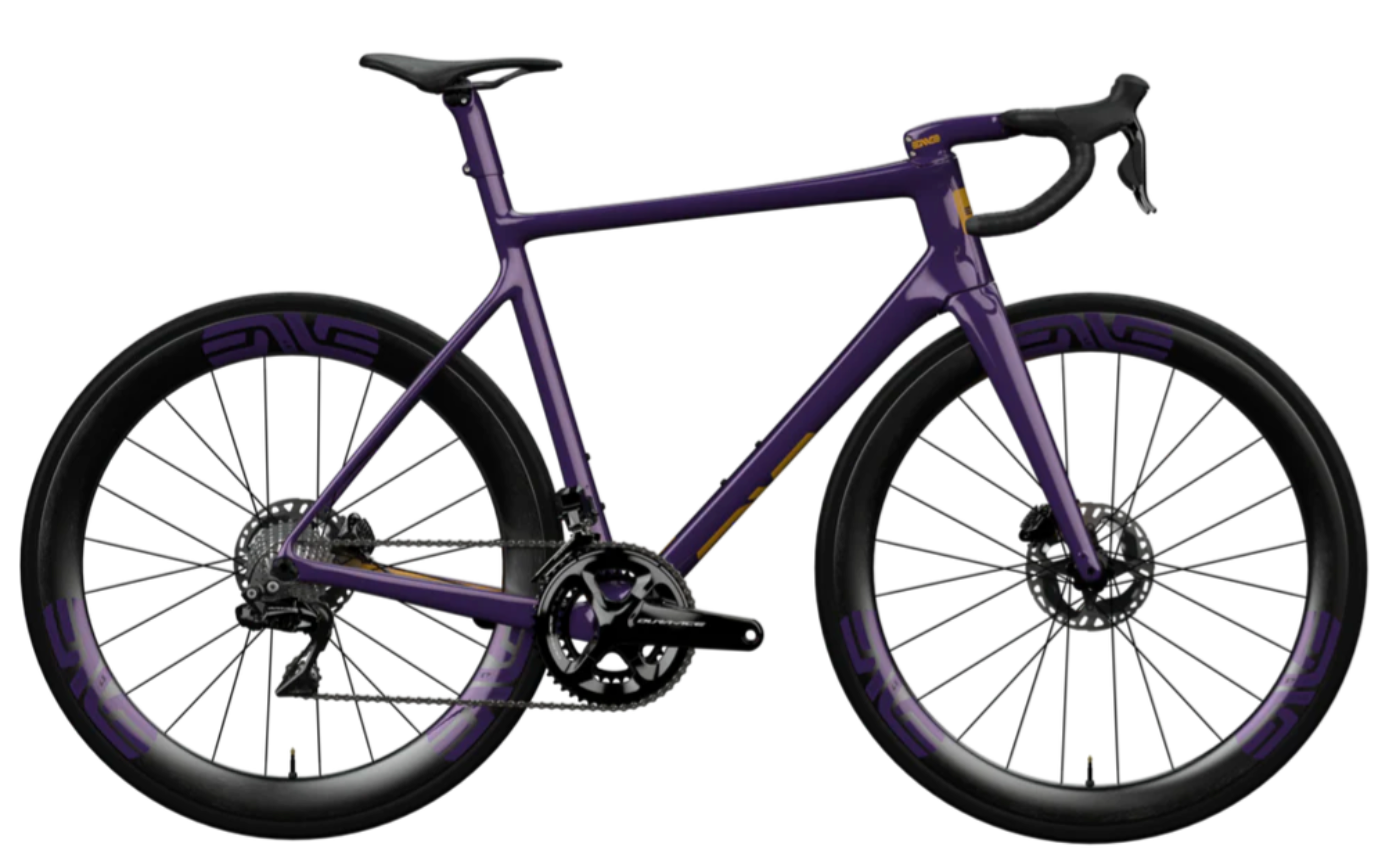

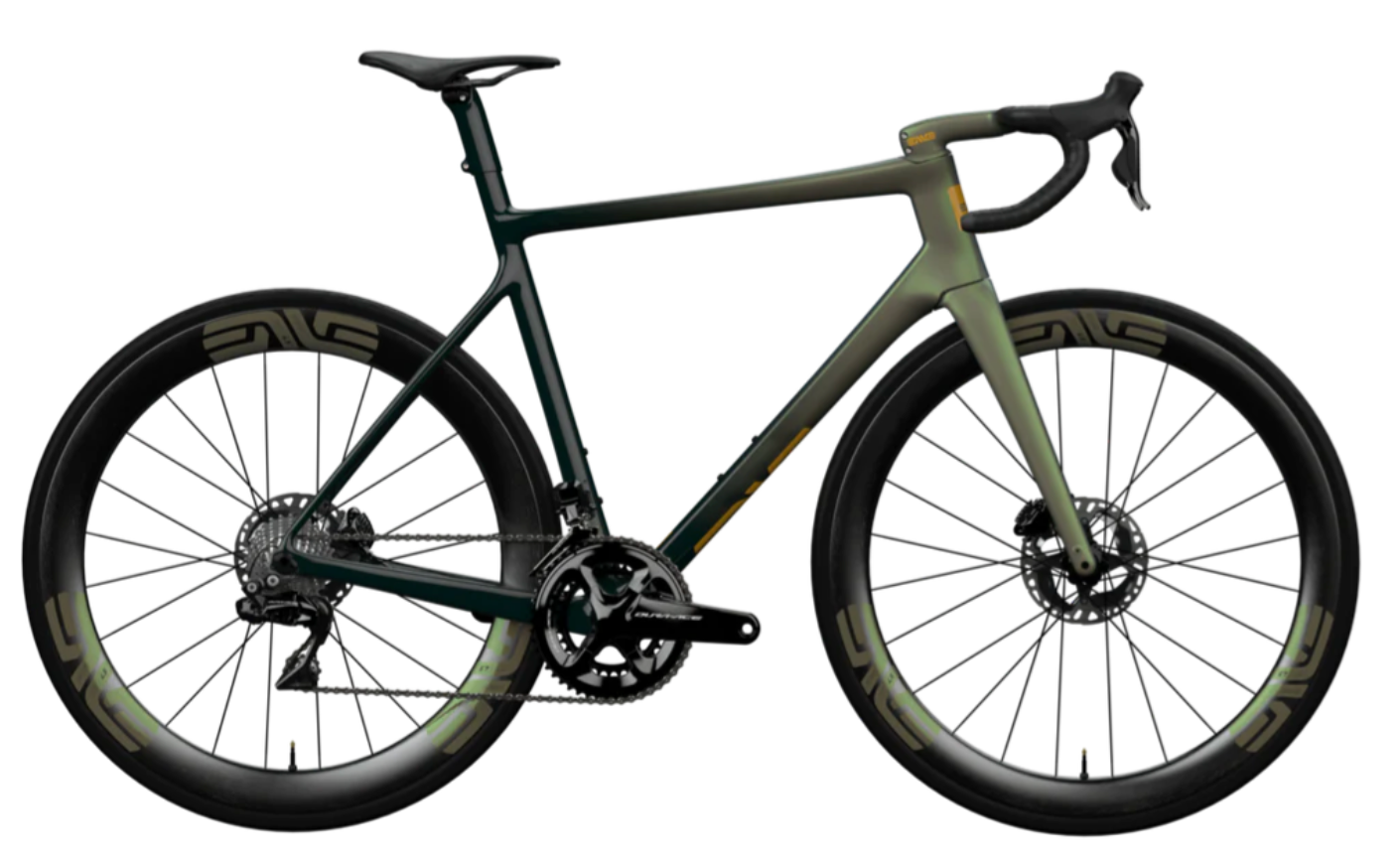

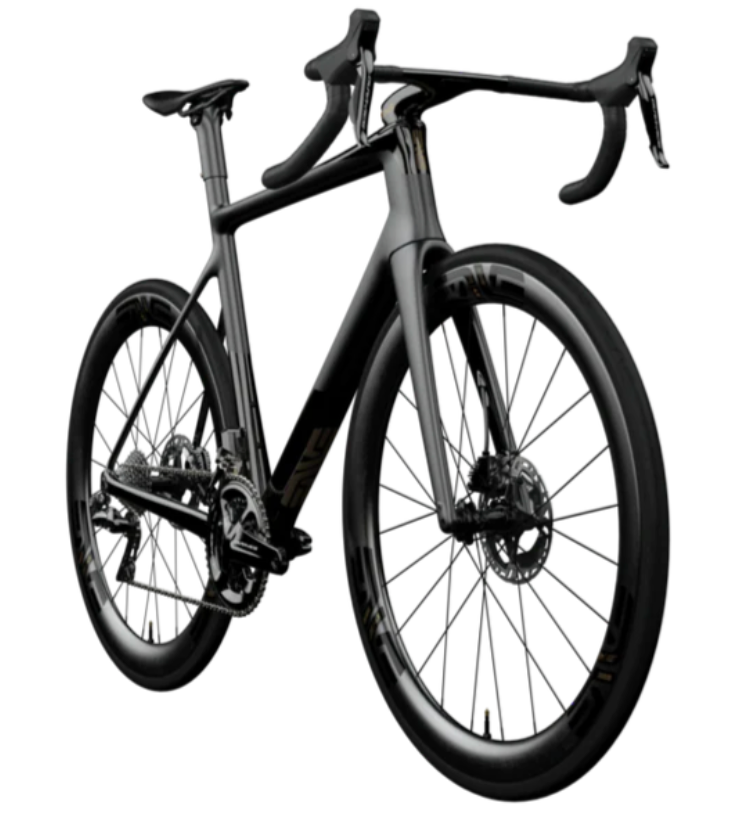

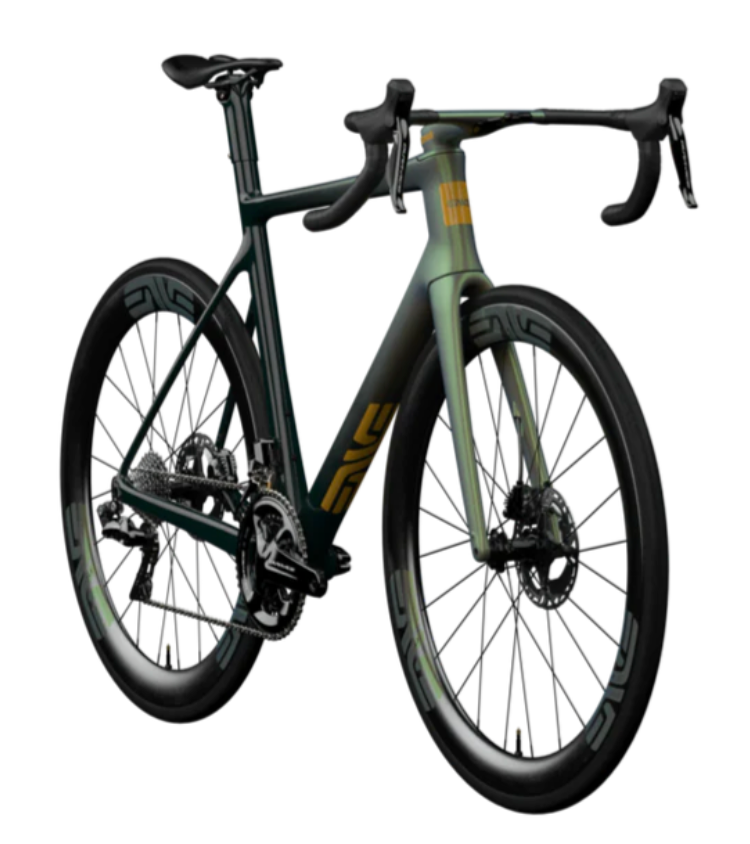

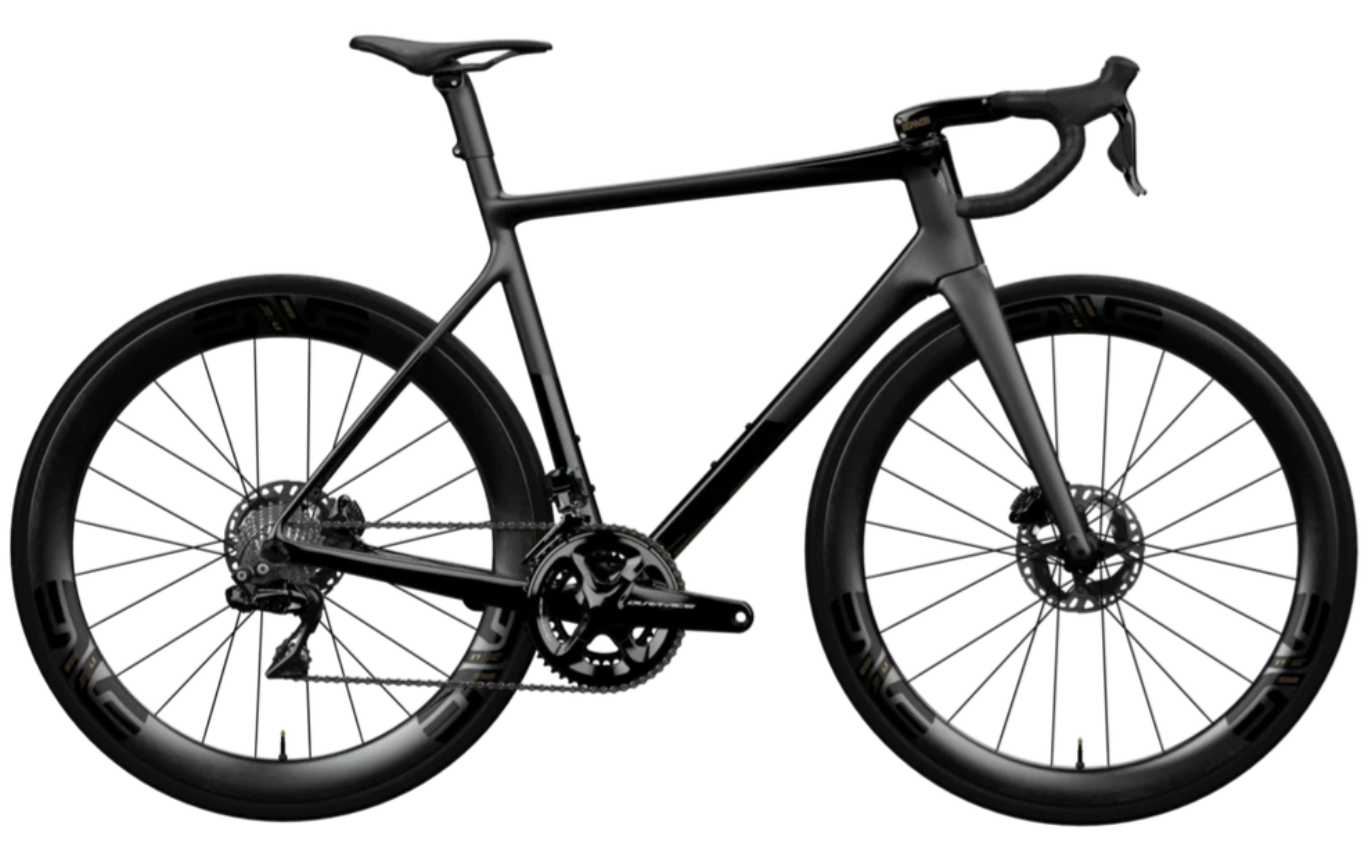

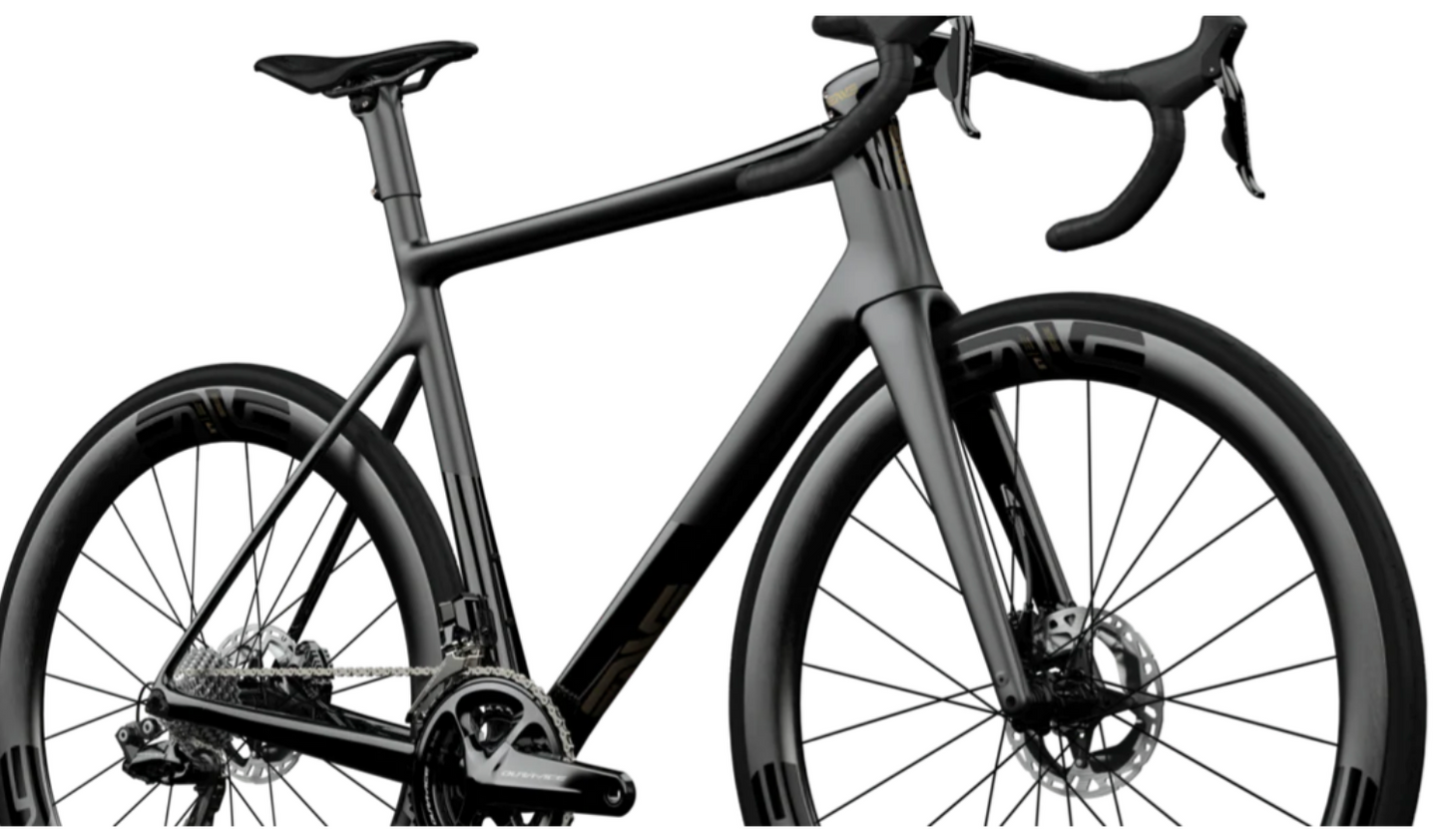

ENVE Custom Road
High tech meets high touch with the ENVE Custom Road bike. From geometry to paint, to wheels and components, each ENVE Custom is tailored to your specific wants and needs.
Put down your deposit today to get in the queue for a modern road bike that’s uniquely yours, and uniquely ENVE. After you reserve your spot in the production lineup, you can take your time customizing everything from geometry to paint color, and craft one-of-a-kind bike tailored to your needs.
Custom Road Chassis starting at $8000
Put down a $500 deposit down today to start your dream build!
Frame Specs
| Frame Material | ENVE M.O.D Carbon |
| Fork Material | ENVE M.O.D Carbon |
| Target Application | Road Race/Performance or Endurance |
| Sizes (cm) | Custom (∼47cm, ∼50cm, ∼52cm, ∼54cm, ∼56cm, ∼58cm, ∼60cm; +/- 1cm) |
| Fork Rake | 55, 51, 47, 43, 39 (determined during fit) |
| Frame Weight | 850g +/- 2% (Size 56, Unpainted) |
| Headset | ENVE Integrated IS52/IS52 Internal Drop-In |
| Headset Bearing | 1.5″ IS52 Upper and Lower |
| Seat Post Diameter | ENVE Integrated Seat Mast Topper |
| BB Type | 386EVO |
| Brake Mount | Flat Mount |
| Front Axle | 12×100 (Total Length: 122, TP:1.5, TL:15) |
| Rear Axle | 12×142 (Total Length: 168, TP:1.0, TL:14) |
| Minimum Tire Size | 25c |
| Optimal Tire Size | 27c-32c |
| Maximum Listed Tire Clearance | 35c |
| Frame Routing | Internal |
FIT STACK LIMITATIONS ARE AS FOLLOWS:
- Max headtube length = 230mm
- Max fork steerer-tube length = 400mm
- Max steerer-tube spacer stack = 40mm
- Max FIT Stack with 230mm headtube + AR Bar Stem Combo + 40mm of spacers =720mm
- Max FIT Stack with 230mm headtube + AR Rise Stem + AR Handlebar + 40mm of spacers =760mm
Race road geometry
- Prioritizes agility and responsiveness
- Shorter wheelbase
- Geometry tuned for labeled 25-31mm tires
- Max tire clearance – 35mm (labeled)
- Rider archetype: Road/criterium racer, aggressive and responsive, out of the saddle
all road geometry
- Prioritizes stability and control
- Longer wheelbase
- Geometry tuned for labeled 29-35mm tires
- Max tire clearance – 35mm (labeled)
- Rider archetype: Endurance, mixed-surface racer, smooth and flowing, in the saddle.

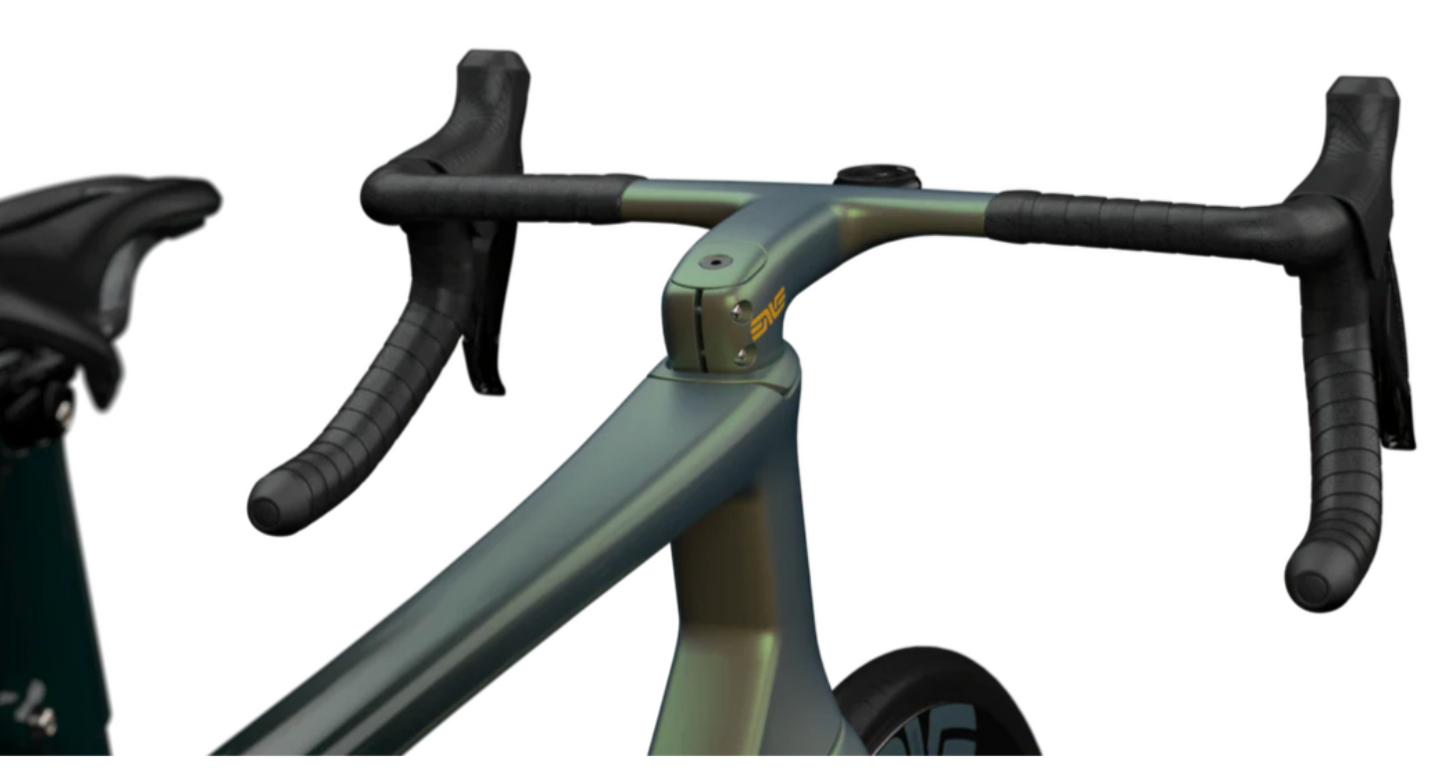

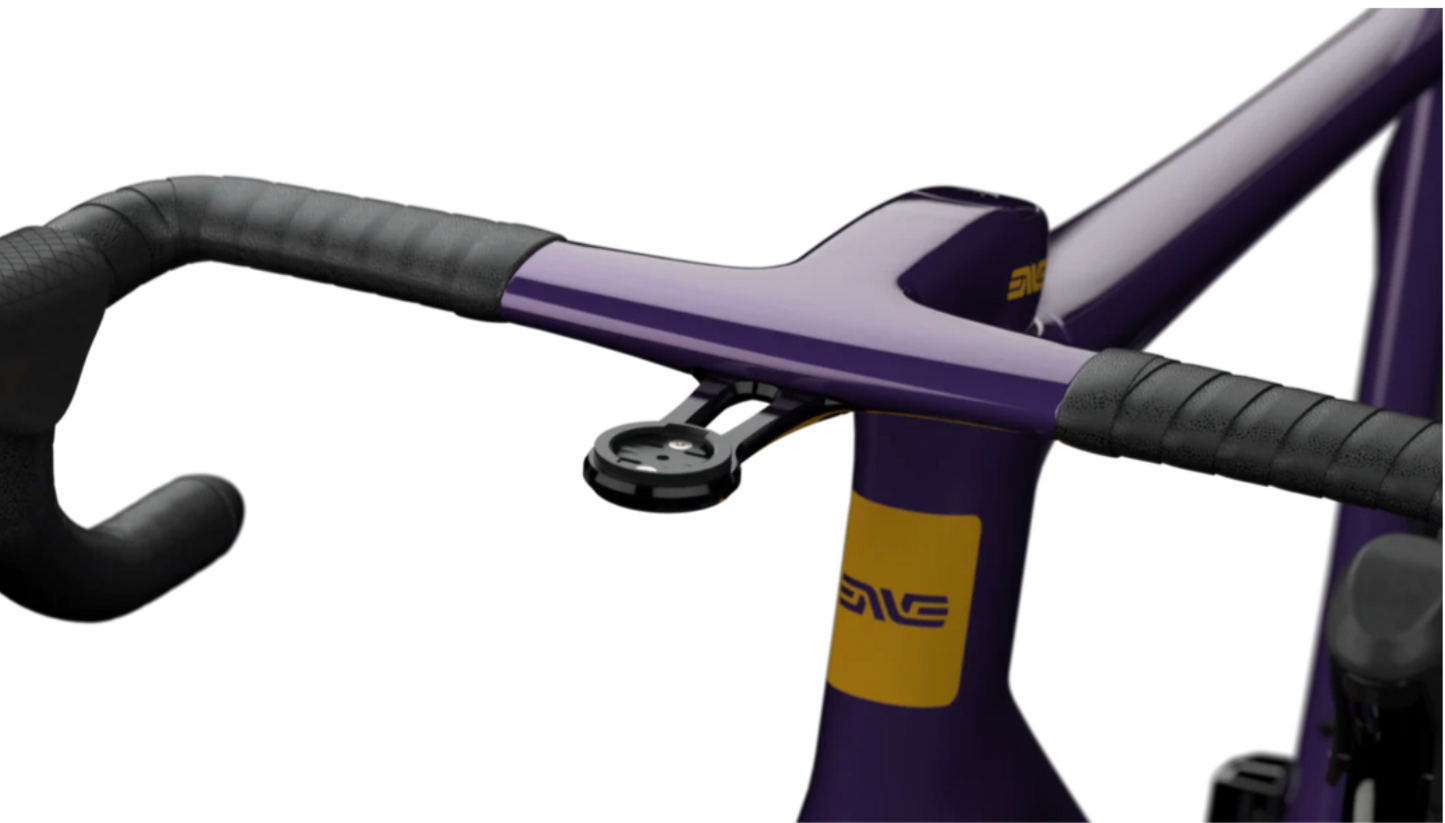

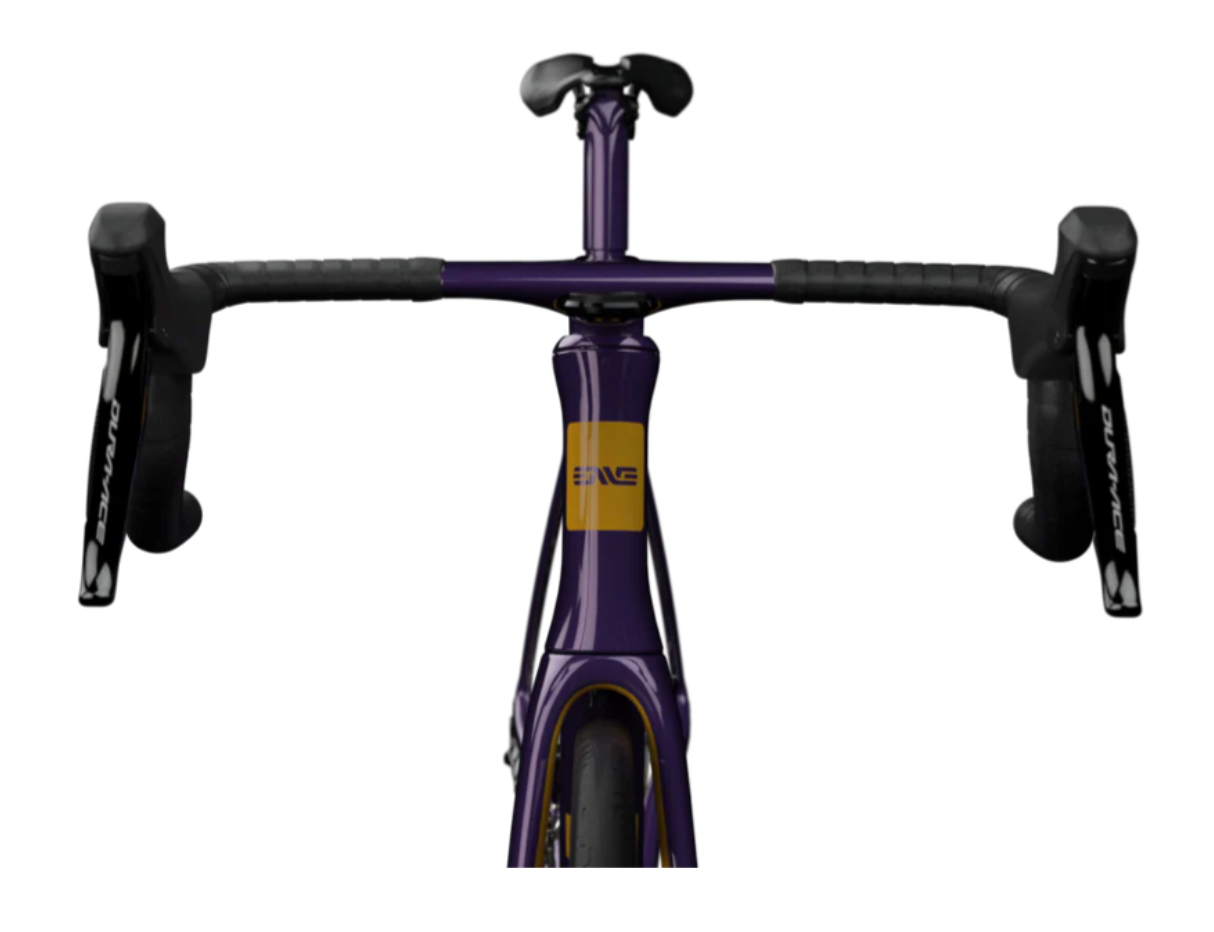

| Handlebars | ENVE SES AR One-Piece Bar and Stem – Custom Size |
| Stem | ENVE SES AR One-Piece Bar and Stem – Custom Size |

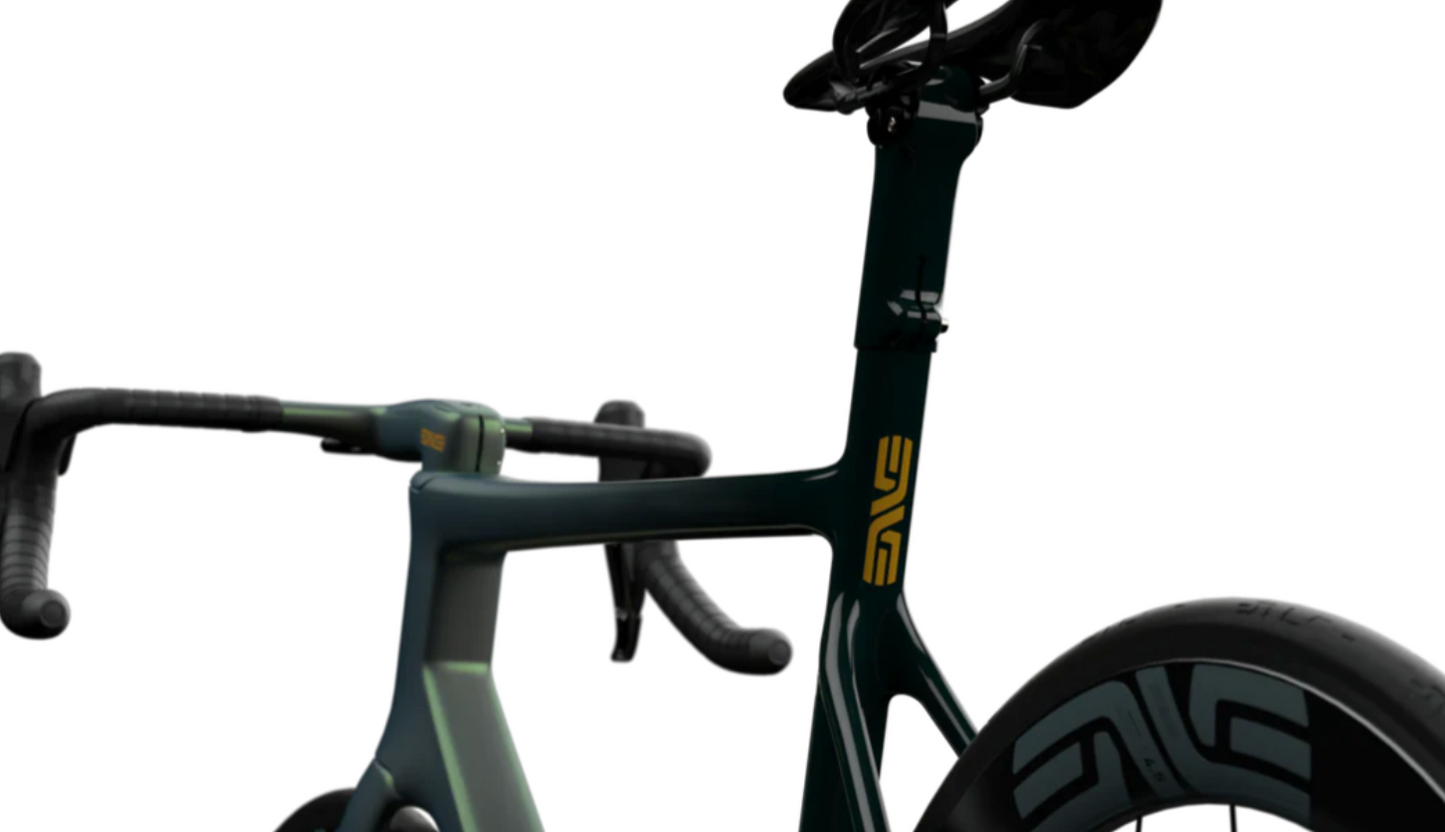

| Seat Posts | Integrated Seat Mast Topper |
