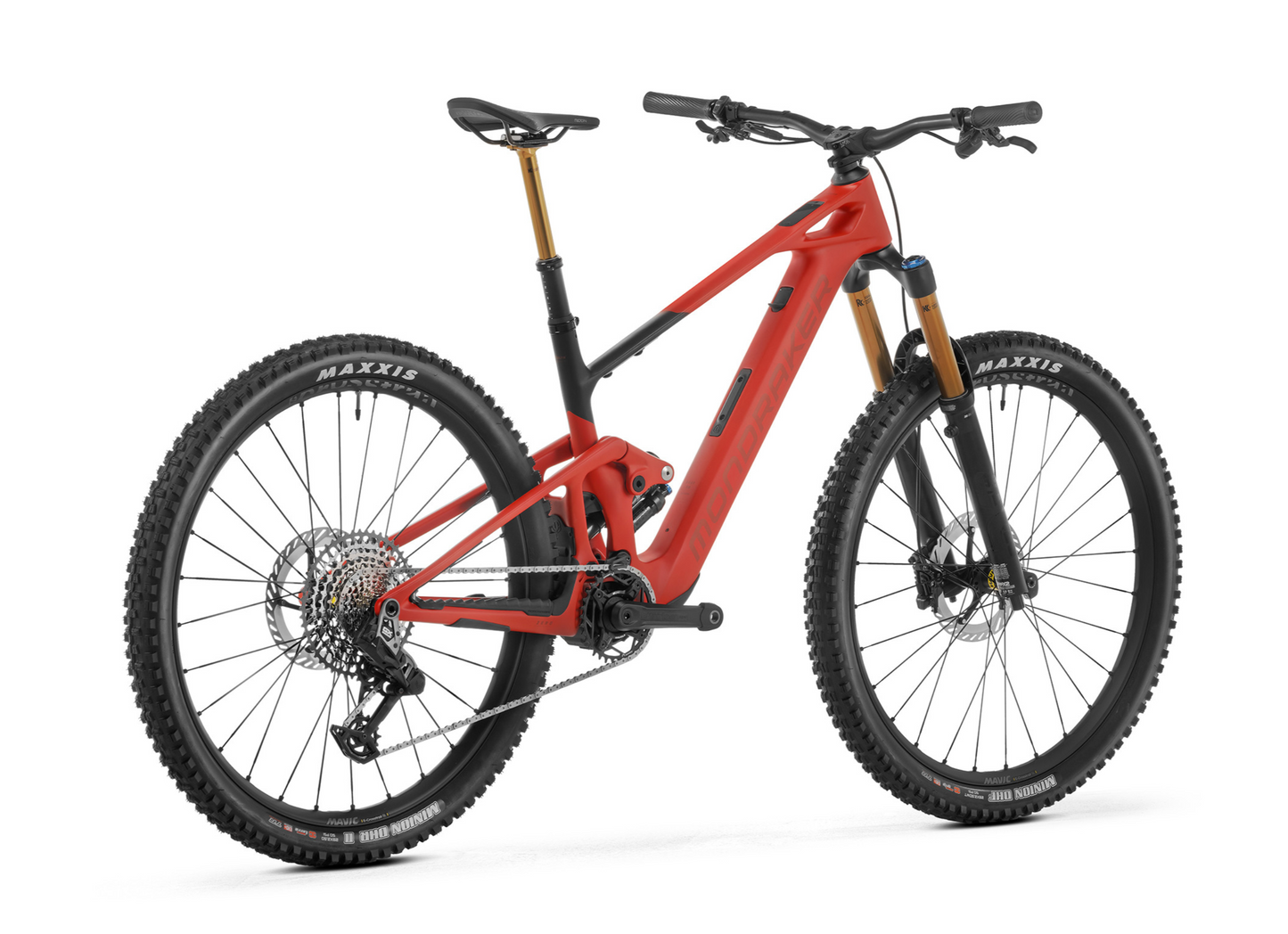

Mondraker Neat RR

Frame

Stealth Air full Carbon, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal & removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, integrated dropout speed sensor, exclusive plastic motor covers.

Sizes

S: 380mm / M: 420mm / L: 450mm / XL: 490mm

Rear shock

Fox Float X Factory Kashima EVOL, 185x55mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings

Shock settings

CS40 compression, RL60 rebound, Rezi B40, LML, 0.2 volume spacer

Fork

Fox 36 29 Float GRIPX2 Factory Kashima, 160mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload

Headset

Acros custom IS52/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock

Stem

Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore

Handlebar

Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise.

Grips

Onoff Forest, CNC lock-on, 135mm

Seatpost

Fox Transfer Factory Kashima internal, adjustable travel, Shimano SL-MT800-IL lever, diameter 31.6mm,S size: 95mm -120mm, M size: 125mm -150mm, L size: 155mm -180mm, XL size: 185mm -210mm

Saddle

Fizik Terra Aidon Slim X5

Front brake

Shimano XT M8120, 4 piston caliper, MT800 ICE-Tech 203mm CenterLock rotor, resin pads with fin

Rear brake

Shimano XT M8120, 4 piston caliper, MT800 ICE-Tech 203mm CenterLock rotor, resin pads with fin

Brake lever

Shimano XT M8100, ergonomic antiskid lever with servo wave, tool less reach adjust, free stroke adjust

Rims

Mavic E-CrossTrail SL, 29 Boost 30mm internal width, hookless, tubeless ready, 28 spokes

Spokes

Mavic 28 straight-pull double butted spokes

Front hub

Mavic Infinity hub, Boost 15x110mm, IS 6 bolts

Rear hub

Mavic Infinity hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts XD freehub

Front tire

Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX GRIP compound, EXO+ protection, 60TPI, folding bead

Rear tire

Maxxis Minion DHR II 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 60TPI, folding bead

Crankset

e*Thirteen Helix Core E*Spec Plus, All sizes: 160mm

Rings

Sram X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD

Chain

Sram GX Eagle T-Type, 12s, Powerlock

Rear derrailleur

Sram GX Eagle AXS T-Type,12s

Shift levers

Sram Eagle AXS Pod MMX, 12s

Casette

Sram XS-1275, 10-52T, T-Type, 12s

Others

Mondraker custom desing Fidlock smoked transparent 600ml bottle + Fidlock base down version *Optional external battery: TQ 160Wh

Weight

41,2 lbs

Display

TQ HPR display V01

Motor

TQ HPR-50

Battery

TQ HPR-50 360Wh integrated and removable
