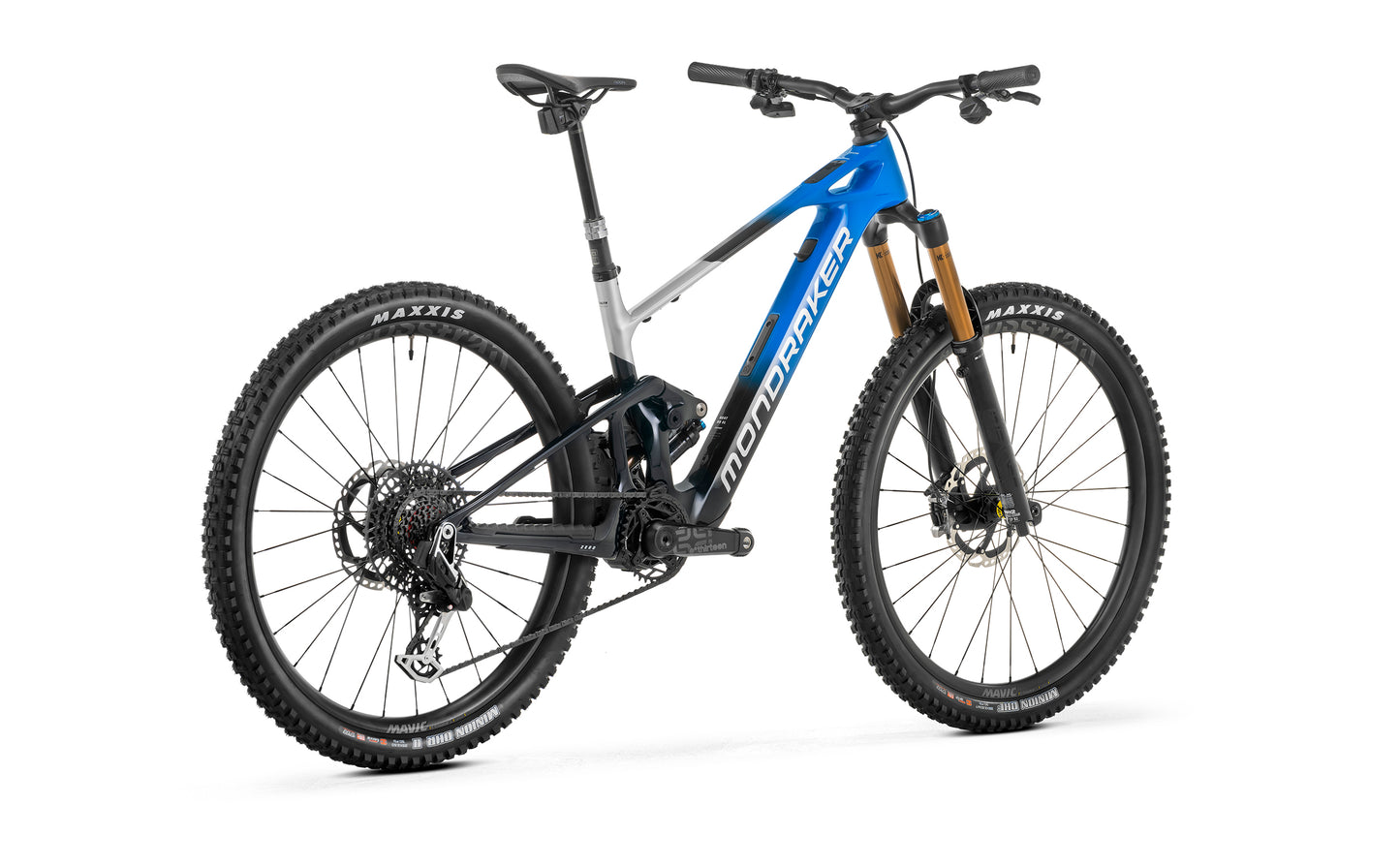

Mondraker Neat RR SL

Frame

Stealth Air full Carbon, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal & removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, integrated dropout speed sensor, exclusive plastic motor covers.

Sizes

S: 380mm / M: 420mm / L: 450mm / XL: 490mm

Rear shock

Fox Float X Factory Kashima EVOL, 185x55mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings

Shock settings

CS40 compression, RL60 rebound, Rezi B40, LML, 0.2 volume spacer

Fork

Fox 36 29 Float GRIPX2 Factory Kashima, 160mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload

Headset

Acros custom IS52/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock

Stem

Onoff S9 30mm 0º, Full CNC, 31.8mm barbore

Handlebar

Onoff S9 1.0 Carbon, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise.

Grips

Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size

Seatpost

RockShox Reverb Stealth AXS, diameter 31.6mm S size: 340x125mm M size: 390x150mm L size: 440x170mm XL size: 440x170mm

Saddle

Fizik Terra Aidon Slim X5

Front brake

Shimano XTR M9120, 4 piston caliper, RTMT905 ICE-Tech 203mm IS 6 bolts one-piece rotor, resin pads with fin

Rear brake

Shimano XTR M9120, 4 piston caliper, RTMT905 ICE-Tech 203mm IS 6 bolts one-piece rotor, resin pads with fin

Brake lever

Shimano XTR M9120, ergonomic antiskid lever with servo wave, tool less reach adjust,

Rims

Mavic E-CrossTrail SL Carbon, 29 Boost 30mm internal width, hookless, tubeless ready, 28 spokes

Spokes

Mavic 28 straight-pull double butted spokes

Front hub

Mavic Infinity hub, Boost 15x110mm, IS 6 bolts

Rear hub

Mavic Infinity hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts XD freehub

Front tire

Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX GRIP compound, EXO+ protection, 60TPI, folding bead

Rear tire

Maxxis Minion DHR II 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 60TPI, folding bead

Crankset

e*Thirteen TRS Race carbon ebike, All sizes: 160mm

Rings

Sram X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD

Chain

Sram X0 Eagle T-Type, 12s, Powerlock

Rear derrailleur

Sram XX Eagle AXS, T-Type, 12s

Shift levers

Sram Eagle AXS Pod MMX, 12s

Casette

Sram XG-1295, 10-52T, T-Type, 12s

Others

Mondraker custom desing Fidlock smoked transparent 600ml bottle + Fidlock base down version *Optional external battery: TQ 160Wh

Weight

40,3 lbs

Display

TQ HPR display V01

Motor

TQ HPR-50

Battery

TQ HPR-50 360Wh integrated and removable
