Norco Fluid VLT
Norco Fluid VLT
Regular price
$8,999.00 USD
Regular price
$9,999.00 USD
Sale price
$8,999.00 USD
Unit price
/
per

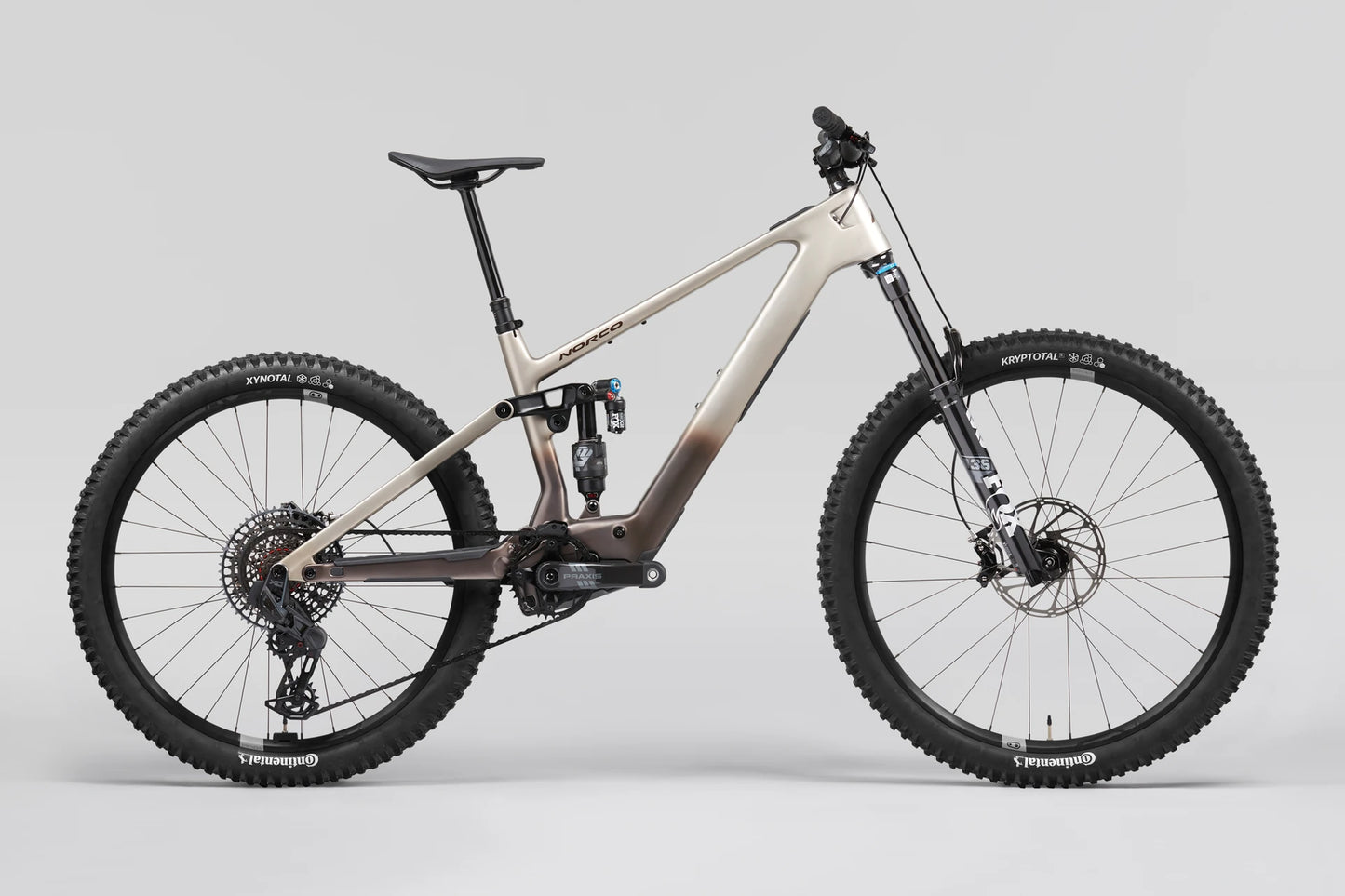

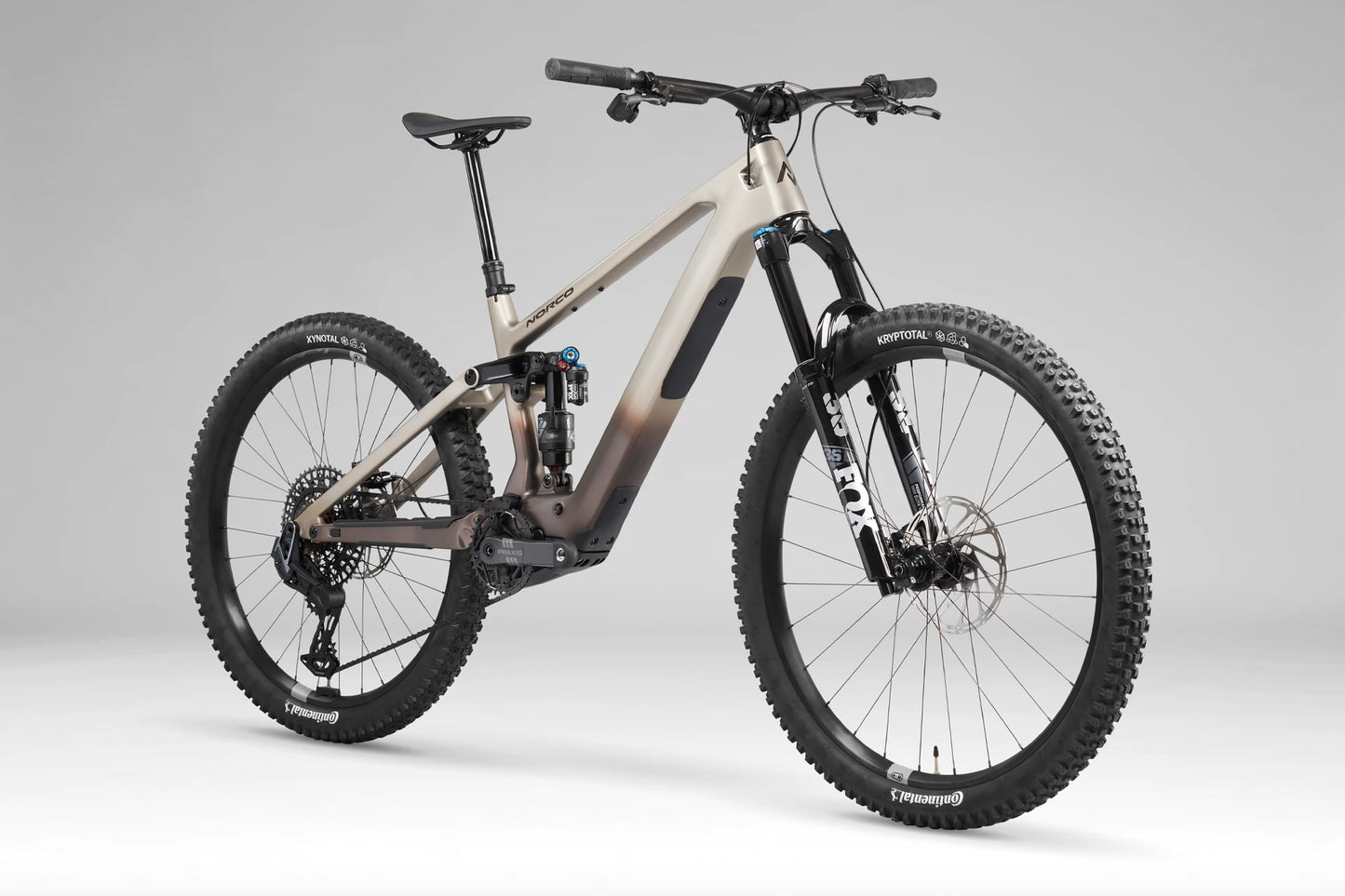

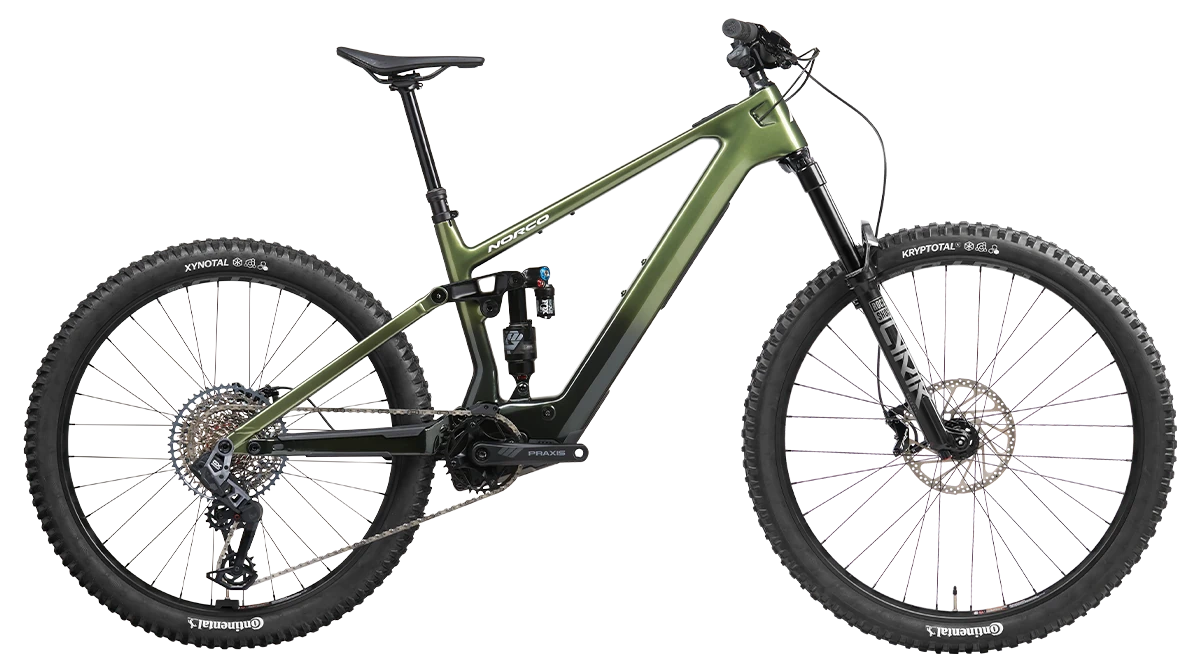

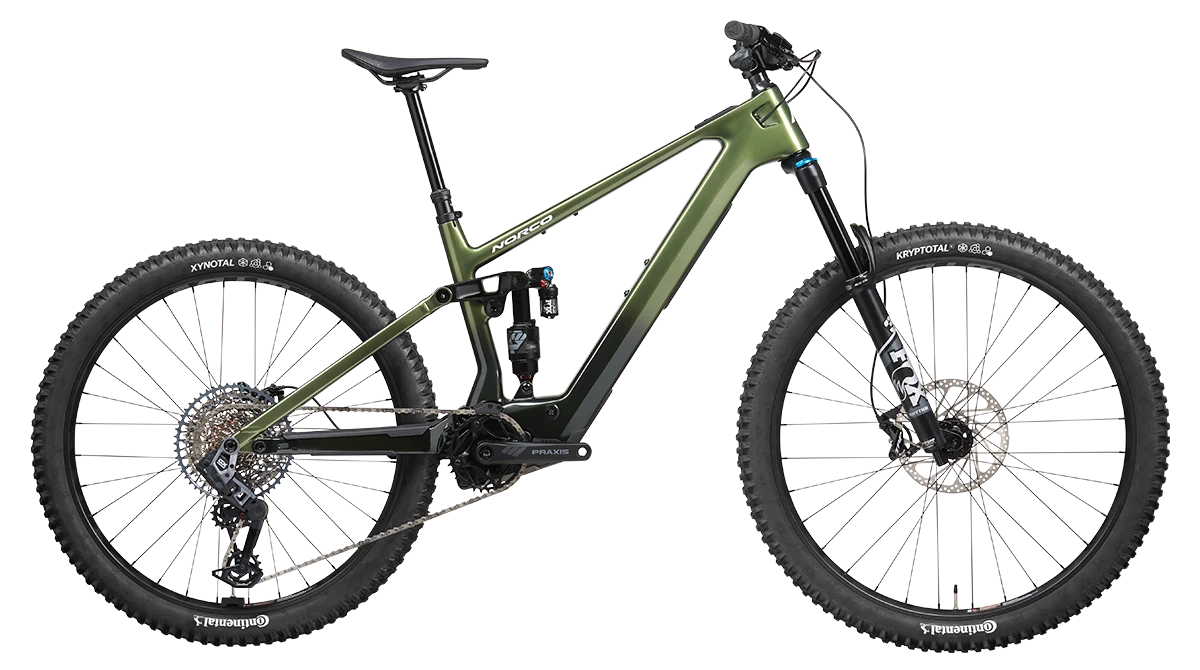

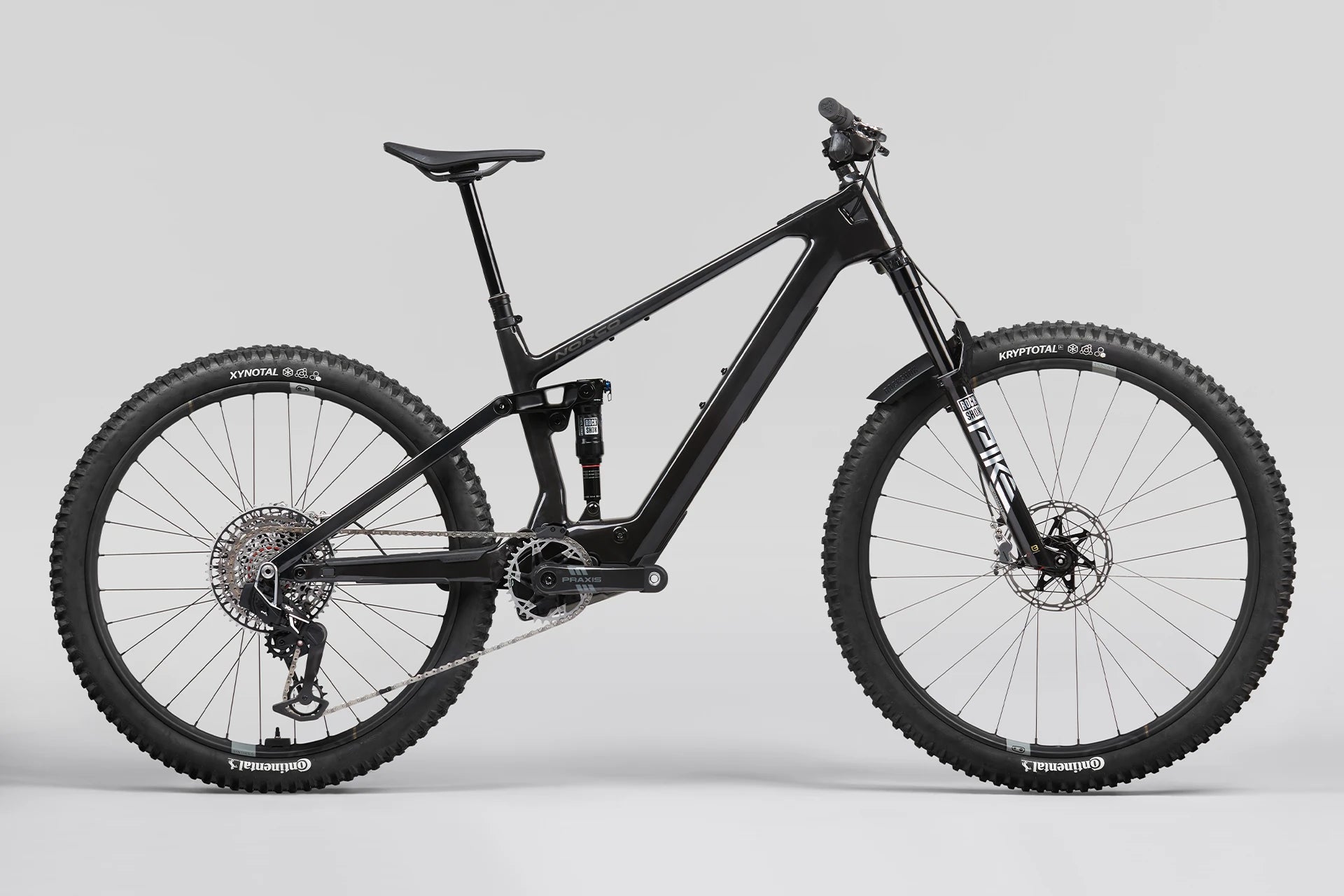

2024 Fluid VLT

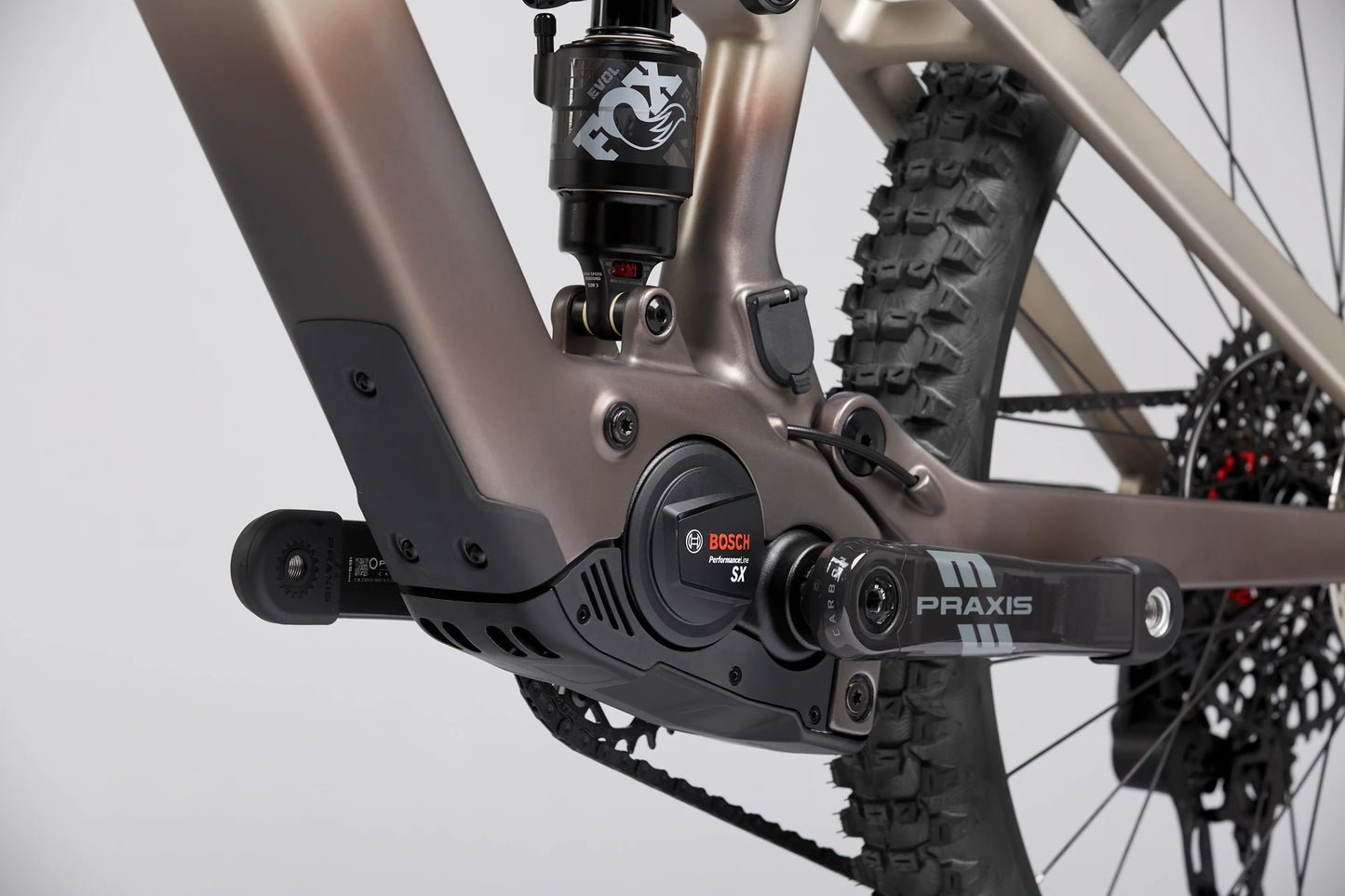

Get more rides in and make the most of every minute of the lightweight Fluid VLT C1. Featuring the next-level Bosch Performance Line SX drive system, integrating mixed wheels across all 5 frame sizes for optimum weight balance & handling.
Light weight capability and full speed fun.
5 | 4 | 3 | 2 | 1 | ||
---|---|---|---|---|---|---|
Wheel Size | 29"/27.5" | 29"/27.5" | 29"/27.5" | 29"/27.5" | 29"/27.5" | |
Travel (mm front/mm rear) |
150/140
|
|||||
Reach | 522.5 | 497.5 | 472.5 | 447.5 | 422.5 | |
Stack | 646 | 637 | 628 | 619 | 610 | |
HTA | Head Tube Angle |
64.5
|
||||
OS | Fork Offset |
44
|
||||
ST | Seat Tube Length | 475 | 445 | 415 | 395 | 385 |
STA | Effective Seat Tube Angle | 77.50 | 77.25 | 77.00 | 76.75 | 76.50 |
RC | Rear Centre Length | 444 | 440 | 436 |
432
|
|
BB | Bottom Bracket Drop |
28/8
|
||||
BBH | Bottom Bracket Height |
350
|
||||
HTT | Horizontal Top Tube | 666 | 642 | 618 | 593 | 569 |
WB | Wheelbase | 1310 | 1277 | 1243 | 1210 | 1181 |
SOH | Standover | 743 | 720 | 703 | 701 | 715 |
HT | Head Tube Length | 140 | 130 | 120 | 110 | 100 |
Trail |
132
|
|||||
Recommended Seatpost Drop |
200
|
170 | 150 | 125 | ||
Maximum Post Insertion | 330 | 300 | 270 | 250 | 240 | |
Stem Length |
40
|
|||||
Crank Length |
165
|
|||||
Tire Size |
2.35" – 2.6"
|
|||||
Water Bottle Compatible |
1 x 750 mL
|
1 x 620 mL |
