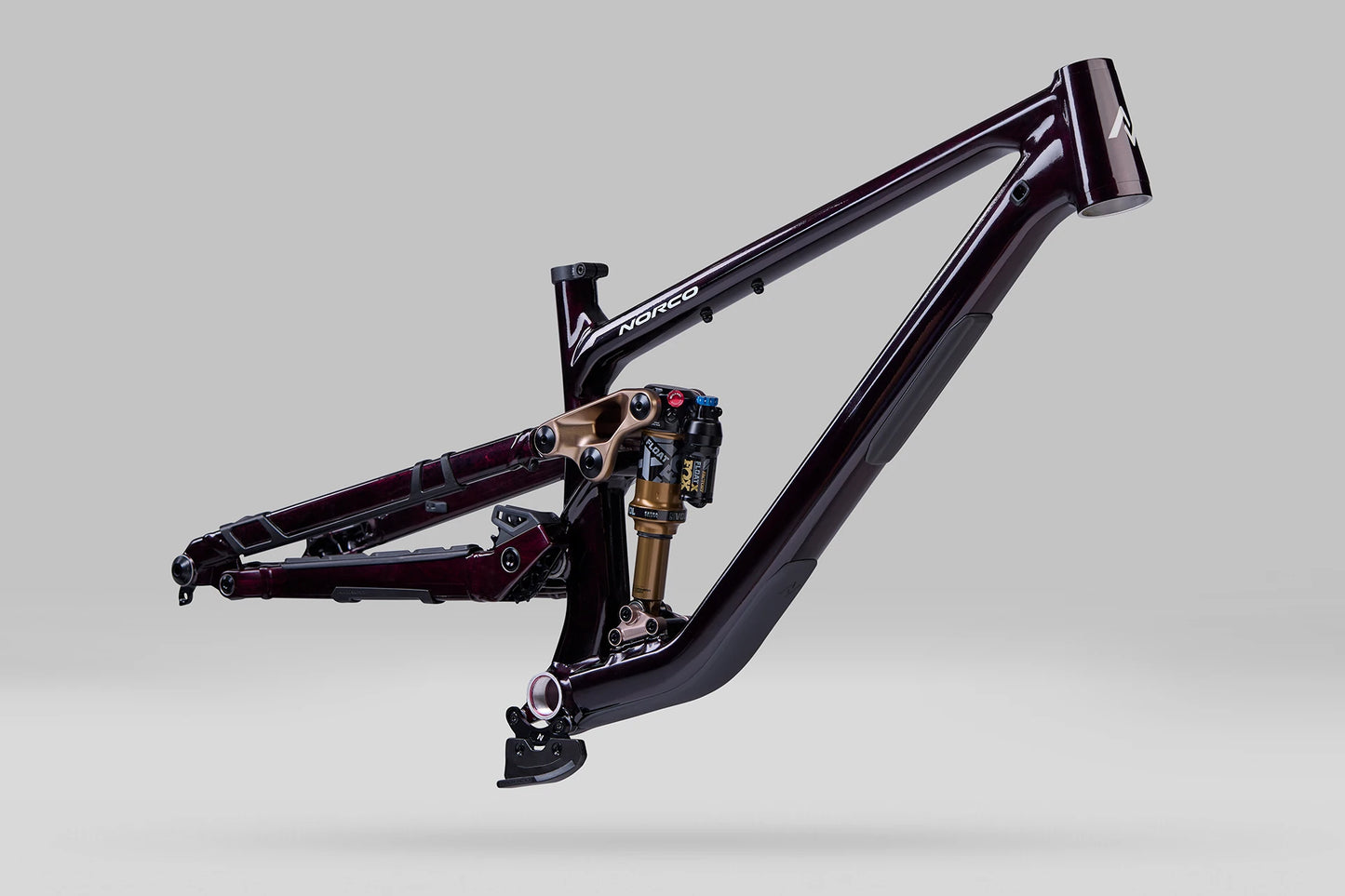

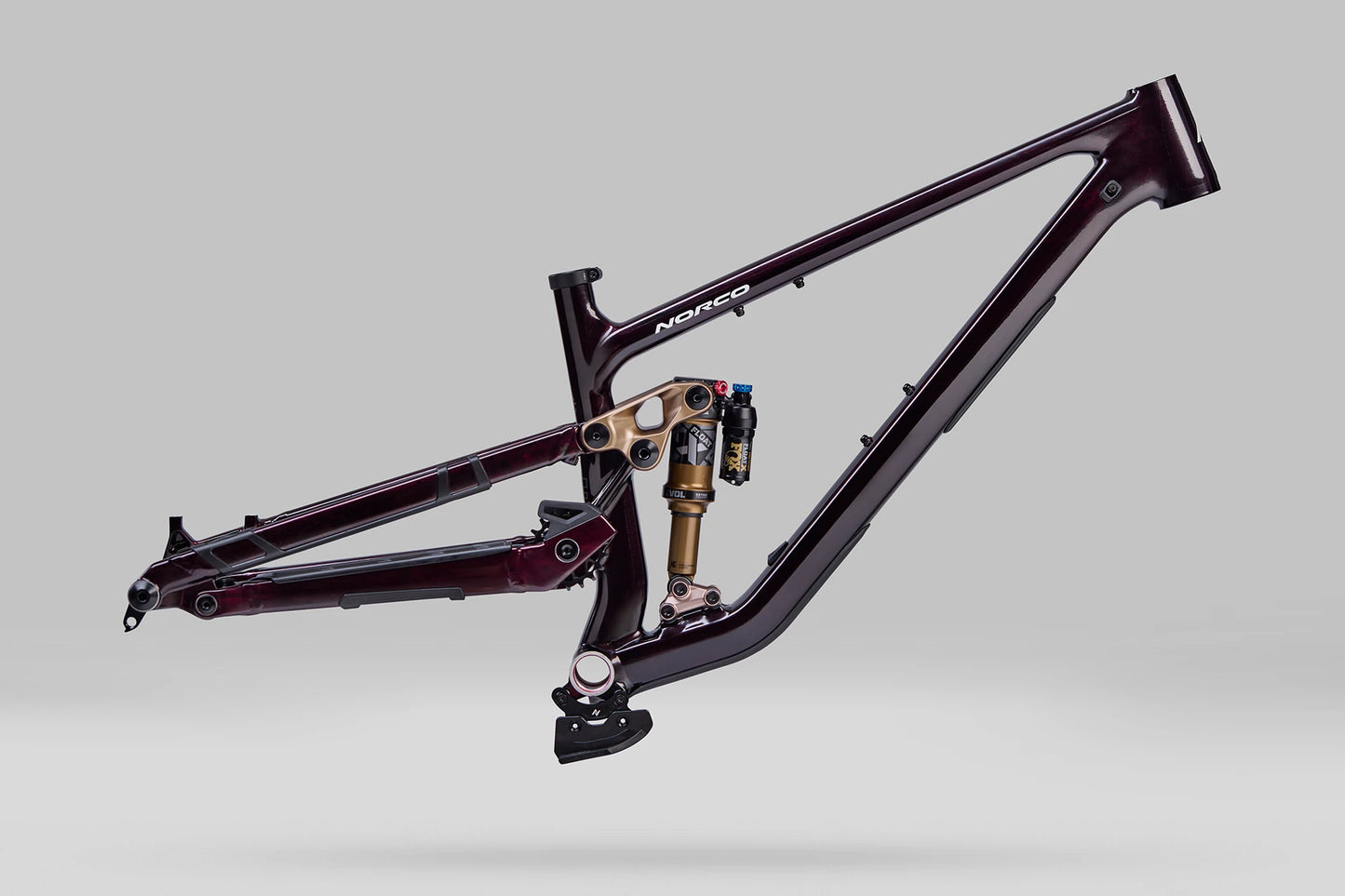

2025 Optic A Framekit
Whether you’re ripping fast flowy singletrack, putting the power down on punchy climbs, or tearing the tires off in the corners, the Optic continues to push the boundaries of what’s possible on a short travel trail bike.
VPSHP Suspension Platform
Designed around Norco’s VPSHP suspension layout that increases rearward axle path to improve suspension performance in technical terrain, while retaining the dynamic experience riders expect from a short travel trail bike.
With 140mm/125mm of travel, the 2025 Optic condenses years of technology from long travel bikes into a lightweight package that’s as ready to tear up climbs as it is tackling challenging descents. The VPSHP suspension layout provides increased rearward axle path and an idler to manage pedal feedback, keeping Optic’s playful roots, while punching above its weight when the trails get rough.
Through extensive testing using an i-track configured idler location, anti-squat has been tuned for efficiency and responsive feel under power. The idler mounted to the chainstay manages chain growth and pedal-kickback.
Swapping the linkarm and lower shock mount with our “Missing Link Kit” converts between 29” and 27.5” to let you pick the wheelsize that suits you best, while maintaining geometry and kinematics to ensure consistent fit and bike setup.
Frame | Aluminum Frame, 125mm Travel, UDH, Eagle Transmission Compatible, Ride Aligned™ |
Rear Shock | Fox Float X Factory, 185x50mm TR |
Chain Guide | Norco Idler Guide and Lower Guide |
Seatpost Clamp | Norco Alloy Nutted Clamp, 38.5 ID |
Rear Hub Skewer | 148mm x 12mm TA, L174, TL13, M12x1.0 |
1 | 2 | 3 | 4 | 5 | 1 | 2 | 3 | 4 | 5 | ||
---|---|---|---|---|---|---|---|---|---|---|---|
Wheel Size | 29"/27.5" | 29"/27.5" | 29"/27.5" | 29"/27.5" | 29"/27.5" | 29" | 29" | 29" | 29" | 29" | |
Travel (mm front/mm rear) |
140/125
|
||||||||||
Reach | 422.5 | 447.5 | 472.5 | 497.5 | 522.5 | 422.5 | 447.5 | 472.5 | 497.5 | 522.5 | |
Stack | 608 | 617 | 626 | 635 | 644 | 608 | 617 | 626 | 635 | 644 | |
HTA | Head Tube Angle |
65
|
|||||||||
OS | Fork Offset |
44
|
|||||||||
ST | Seat Tube Length | 350 | 370 | 385 | 430 | 445 | 350 | 370 | 385 | 430 | 445 |
STA | Effective Seat Tube Angle | 76.5 | 76.75 | 77 | 77.25 | 77.5 | 76.5 | 76.75 | 77 | 77.25 | 77.5 |
RC | Rear Centre Length | 415 | 419 | 423 | 427 | 431 | 421 | 425 | 429 | 433 | 437 |
BBDF/R | Bottom Bracket Drop (Front/Rear) |
32/11
|
32/32
|
||||||||
BBH | Bottom Bracket Height |
346
|
|||||||||
HTT | Horizontal Top Tube | 568 | 593 | 617 | 641 | 665 | 568 | 593 | 617 | 641 | 665 |
WB | Wheelbase | 1154 | 1188 | 1221 | 1254 | 1287 | 1159 | 1193 | 1226 | 1259 | 1292 |
SOH | Standover | 660 | 673 | 682 | 703 | 714 | 660 | 673 | 682 | 703 | 714 |
HT | Head Tube Length | 100 | 110 | 120 | 130 | 140 | 100 | 110 | 120 | 130 | 140 |
Trail |
128
|
||||||||||
Recommended Seatpost Drop | 150 | 170 |
200
|
230 | 150 | 170 |
200
|
230 | |||
Maximum Post Insertion | 250 | 270 |
300
|
330 | 250 | 270 |
300
|
330 | |||
Stem Length |
40
|
||||||||||
Crank Length |
170
|
||||||||||
Tire Size |
2.35" – 2.6"
|
||||||||||
Water Bottle Compatible | 1 x 620 mL |
1 x 750 mL
|
1 x 620 mL |
1 x 750 mL
|
