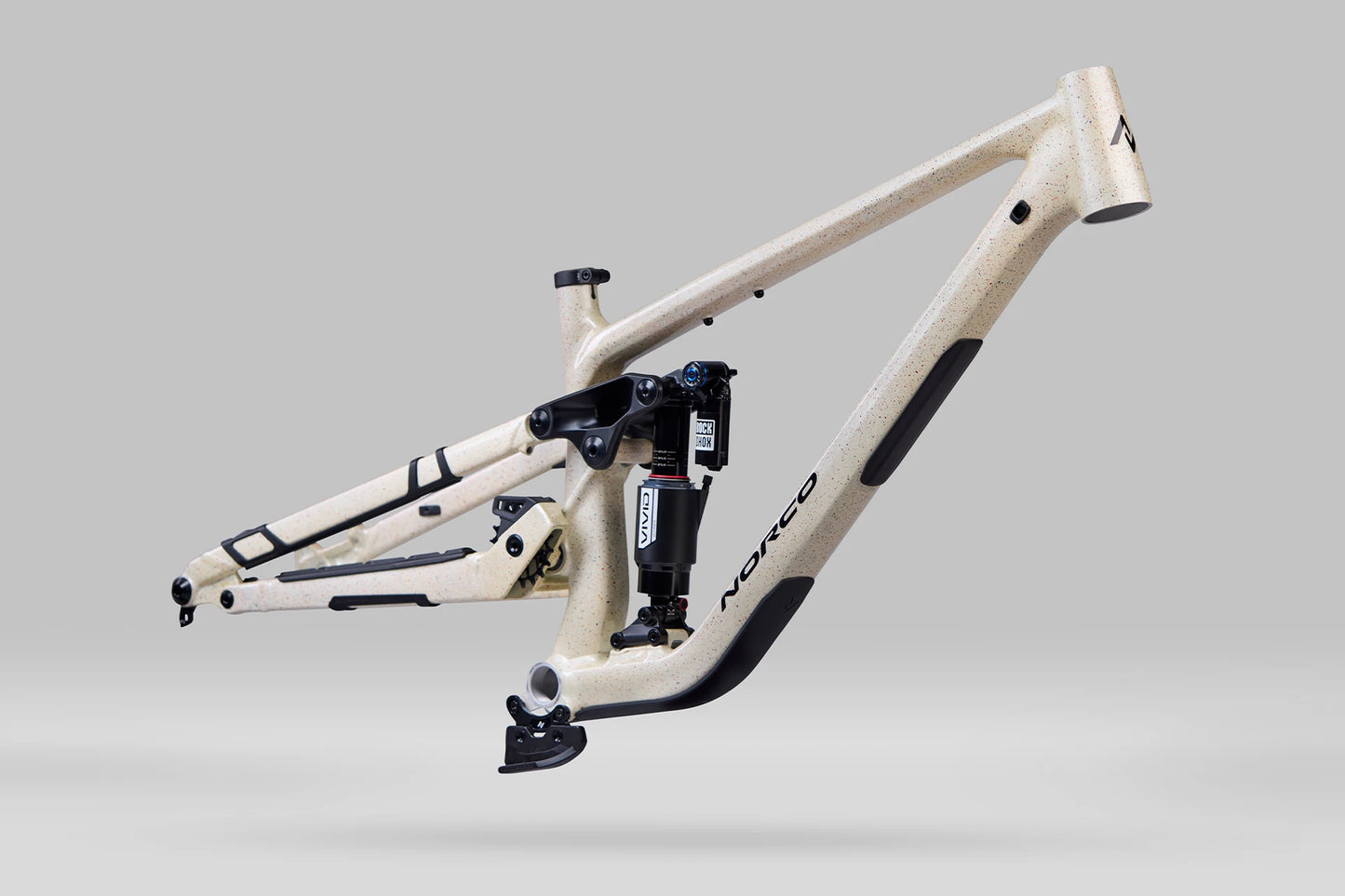

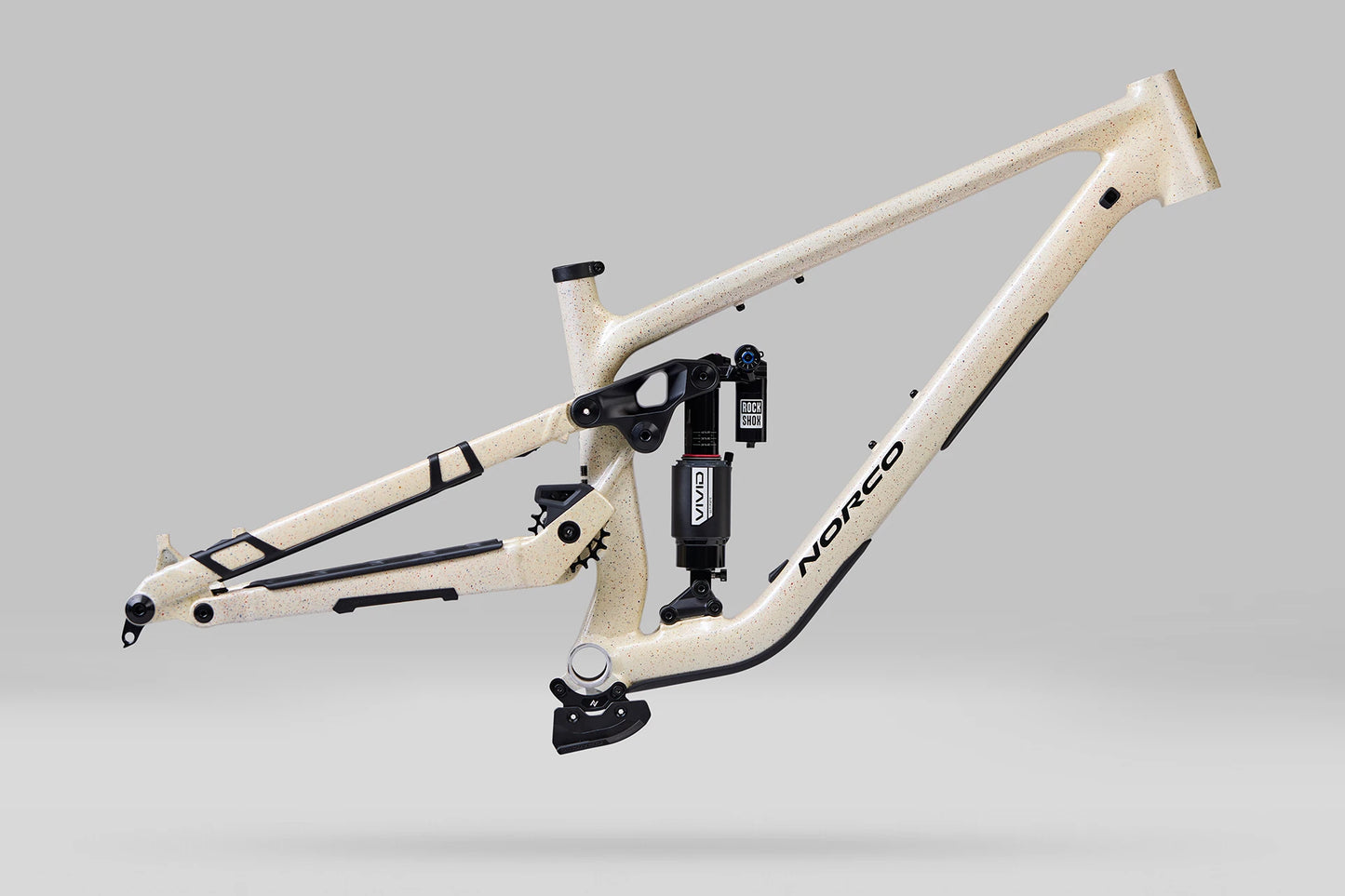

2025 Sight A Frame Kit
Whether you’re carving down a steep loam line, dropping in for an enduro stage, or heading into the backcountry for an all-day epic, this bike performs. With increased rearward axle path, idler, and the innovative VPSHP suspension layout, this new design gives the Sight next level confidence and capability, up or down the mountain. With 160/150mm of travel, the 2025 Sight takes the best of the Range platform and has tightened it up into a light, pedal friendly, maneuverable, high-pivot package.
VPSHP Suspension Platform
Designed around Norco’s VPSHP (Virtual Pivot Suspension | High Pivot) suspension layout, it increases rearward axle path to improve suspension performance in technical terrain, while retaining the dynamic and responsive feel that riders expect from a do-it-all All-Mountain bike.
Through extensive testing using an i-track configured idler location, anti-squat has been tuned for efficiency and responsive feel under power. The idler mounted to the chainstay manages chain growth and pedal-kickback.
Swapping the linkarm and lower shock mount with our “Missing Link Kit” converts between 29” and 27.5” to let you pick the wheelsize that suits you best, while maintaining geometry and kinematics to ensure consistent fit and bike setup.
Includes Missing Link Kit to allow for 29" and mixed wheelsize options.
Frame | Aluminum Frame, High Pivot Horst Suspension, 150mm Travel, UDH, Hangerless Interface Compatible, Ride Aligned™ |

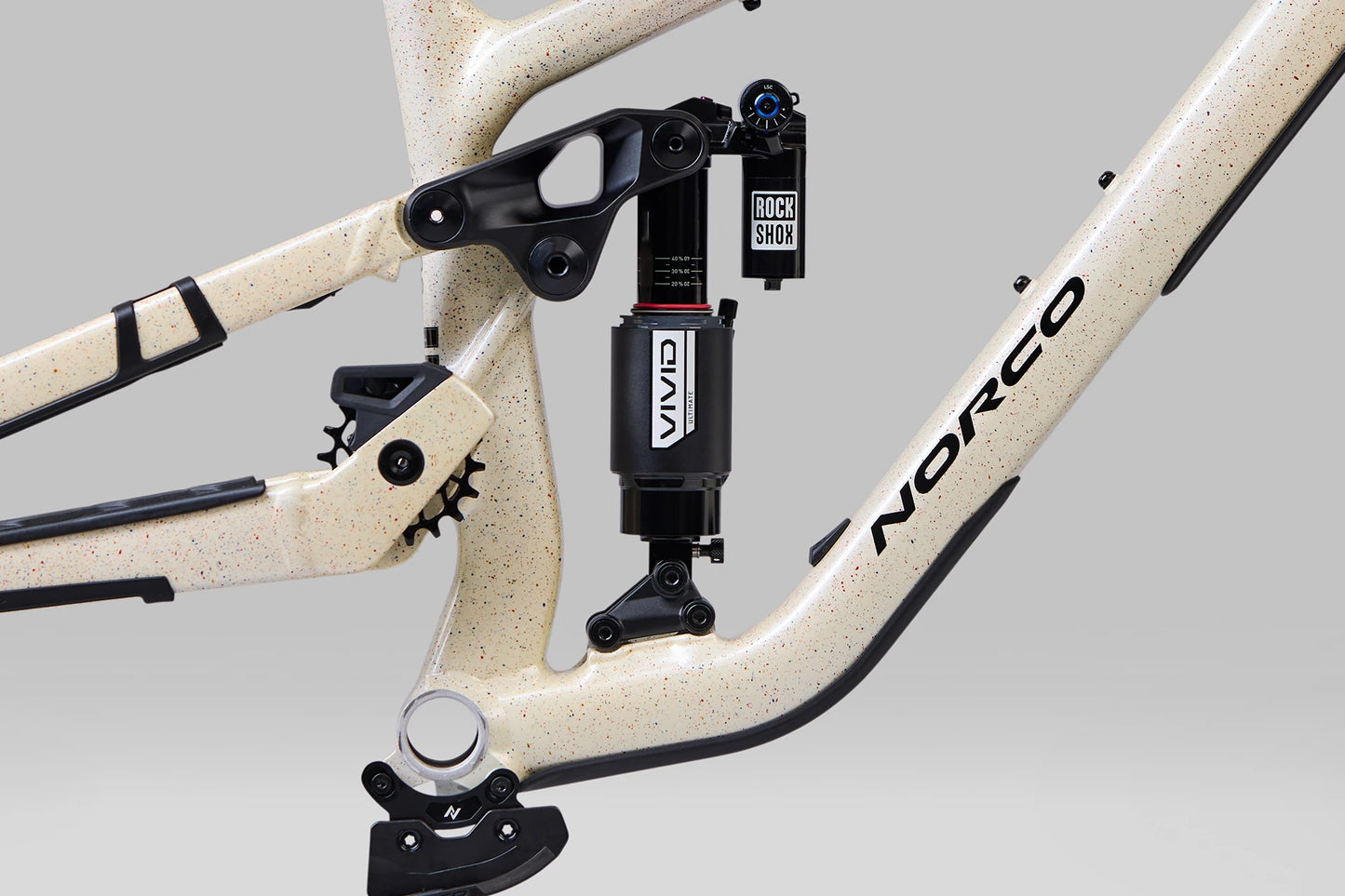

Rear Shock | RockShox Vivid 2 Ultimate Air, 205x60 TR |
Chain Guide | Norco Idler Guide and Lower Guide |
Seatpost Clamp | Norco Alloy Nutted Clamp, 38.5 ID |
Rear Hub Skewer | 148mm x 12mm TA, L174, TL13, M12x1.0 |
1 | 2 | 3 | 4 | 5 | 1 | 2 | 3 | 4 | 5 | ||
---|---|---|---|---|---|---|---|---|---|---|---|
Wheel Size | 29"/27.5" | 29"/27.5" | 29"/27.5" | 29"/27.5" | 29"/27.5" | 29" | 29" | 29" | 29" | 29" | |
Travel (mm front/mm rear) |
160/150
|
||||||||||
Reach | 422.5 | 447.5 | 472.5 | 497.5 | 522.5 | 422.5 | 447.5 | 472.5 | 497.5 | 522.5 | |
Stack | 618 | 627 | 636 | 645 | 654 | 618 | 627 | 636 | 645 | 654 | |
HTA | Head Tube Angle |
64
|
|||||||||
OS | Fork Offset |
44
|
|||||||||
ST | Seat Tube Length | 350 | 370 | 385 | 430 | 445 | 350 | 370 | 385 | 430 | 445 |
STA | Effective Seat Tube Angle | 77 | 77.25 | 77.5 | 77.75 | 78 | 77 | 77.25 | 77.5 | 77.75 | 78 |
RC | Rear Centre Length | 420 | 424 | 428 | 432 | 436 | 426 | 430 | 434 | 438 | 442 |
BBDF/R | Bottom Bracket Drop (Front/Rear) |
25/4
|
25/25
|
||||||||
BBH | Bottom Bracket Height |
353
|
|||||||||
HTT | Horizontal Top Tube | 565 | 589 | 613 | 637 | 661 | 565 | 589 | 613 | 637 | 661 |
WB | Wheelbase | 1181 | 1214 | 1247 | 1281 | 1314 | 1186 | 1219 | 1253 | 1286 | 1319 |
SOH | Standover | 666 | 680 | 689 | 710 | 720 | 666 | 680 | 689 | 710 | 720 |
HT | Head Tube Length | 105 | 115 | 125 | 135 | 145 | 105 | 115 | 125 | 135 | 145 |
Trail |
135
|
||||||||||
Recommended Seatpost Drop | 150 | 170 |
200
|
230 | 150 | 170 |
200
|
230 | |||
Maximum Post Insertion | 250 | 270 |
300
|
330 | 250 | 270 |
300
|
330 | |||
Stem Length |
40
|
||||||||||
Crank Length |
170
|
||||||||||
Tire Size |
2.35" – 2.6"
|
||||||||||
Water Bottle Compatible |
1 x 750 mL
|
