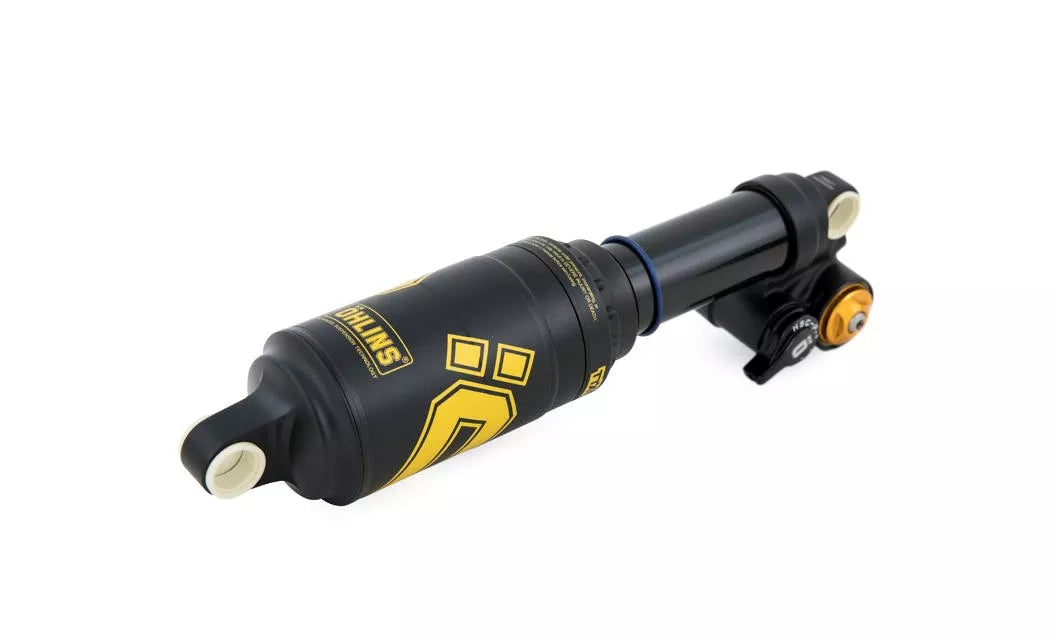

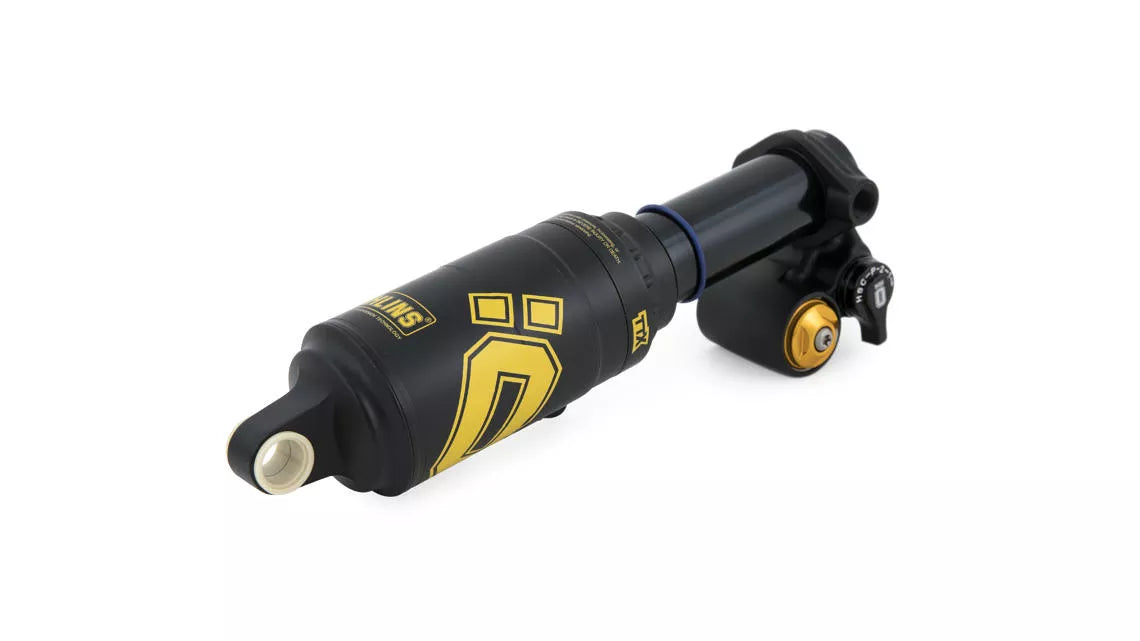

Ohlins TTX2Air Shock
Ohlins TTX2Air Shock
Our high performance, robust air-sprung shock is best suited to bikes with more progressive linkage ratios. The TTX2Air has larger positive and negative air chamber volumes, a double-can, air spring design with additional control of the air volume spacing. This gives riders greater freedom to adjust the spring curve and easily dial-in the exact amount of progression they desire.
The TTX2Air delivers the unrivalled sensitivity, control and flawless all-conditions damping that TTX products have built their reputation on.
Initial set-up of the TTX2Air shock is really easy to do – check out the video here. We’ve made more involved tuning, such as altering volume spacers or adjusting the stroke, as straightforward as possible so it can be performed even with basic skills.
Once dialled-in, you’ll immediately appreciate the shock’s super-plush feel that increases comfort over long, demanding rides, maintains momentum over roots and rocks and also has the capacity to soak up more serious hits. The TTX2Air’s superb levels of confidence inspiring traction and control will encourage you to push your bike harder and faster than ever before.
The TTX2Air combines the superior damping function of our TTX system together with a low friction air-spring. The twin-tubed design enables two-way oil flow through the piston and the double tubes. With the ability to extensively tune the pressure when the oil passes the compression and rebound valves, we have created a well-balanced and extremely predictable damper. This results in a highly effective range of clicks enabling you to easily dial-in the shock and achieve the perfect suspension set-up.
The TTX2Air upgrades an already proven package of damping performance. The metric system design has also allowed us to increase the bushing overlap, making it more robust and improving side load protection. Our wiper seal and air sleeve lubrication technology minimizes friction and delivers outstanding performance that resists fading between service intervals.
Just like every product fitted with TTX damping technology, the TTX2Air has a race-proven settings bank giving access to a huge range of options for tuning the damper to suit any specific rider, bike or riding style.
Öhlins Performance Suspension Guide
Do you want to know which suspension models best suits your bike? Click here to use our Performance Suspension Guide, it will also recommend a personal set up based on your weight and desired sag.
Technologies
No one knows suspension like Öhlins, our proprietary technologies – developed from multi-discipline know-how help you ride smoother, faster and push the boundaries of your MTB. To learn more about our suspension technologies, click here.
Servicing & Support
Regular and effective maintenance is the key to maintaining the optimum function and performance of your Öhlins suspension forks and shocks. Öhlins products can be serviced at any authorized service center and basic service can be performed by riders with intermediate mechanical skills, using commonly owned tools.
Öhlins riders can safely maintain and service their own forks and rear shocks using our simple step-by-step video guides and PDF manuals, supported by easily available spare parts kits that come complete with everything they need to keep their suspension in peak condition. To learn more about our range of service kits, tools and to access our tech videos and service manuals, click here.
Tech
TTX highly adjustable compression valve technology
Double-can design with larger air volume in both positive and negative chamber
Adjustable HSC (High-Speed Compression), LSC (Low-Speed Compression) and rebound damping
Climb mode
Race proven setting bank, to suit any type of riding or linkage design
Air spring volume spacers included as standard in the shock kit
Available in standard metric lengths
190 x 45/42.5/40/37.5mm
210 x 55/52.5/50/47.5mm
230 x 65/62.5/60/57.5mm
Maximum air pressure up to 325 PSI
Delivered with the longest stroke, plus the additional parts required to alter the stroke
451 grams (190 x 45mm)
